close| Price | To be announced |
| Status | Up Coming |
| Product Code | 46291 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| BIOS | Flash BIOS Button | |
| Form Factor | mATX 226mmx243.84mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|
| M.2 Socket | 2x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |

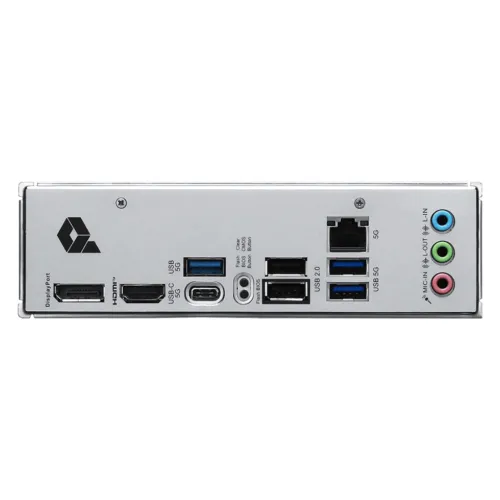

| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126VB 5G LAN | |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

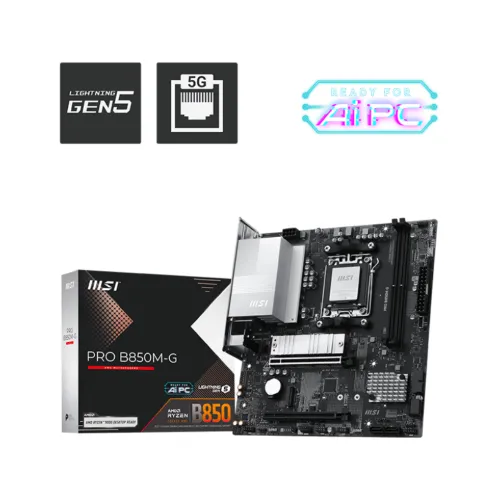

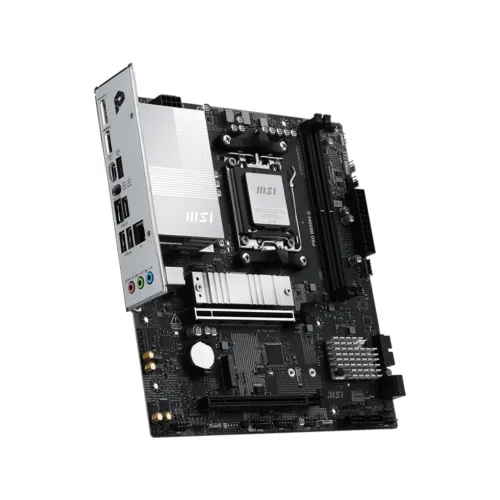

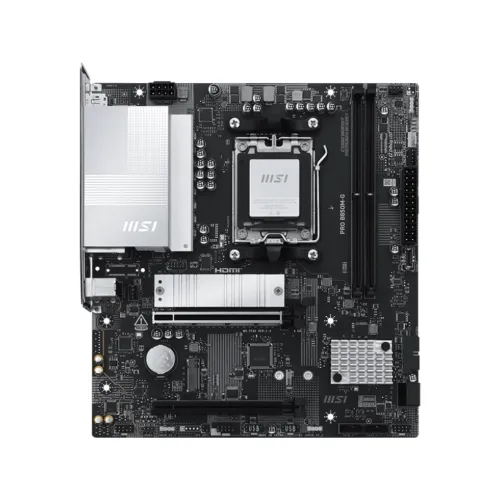

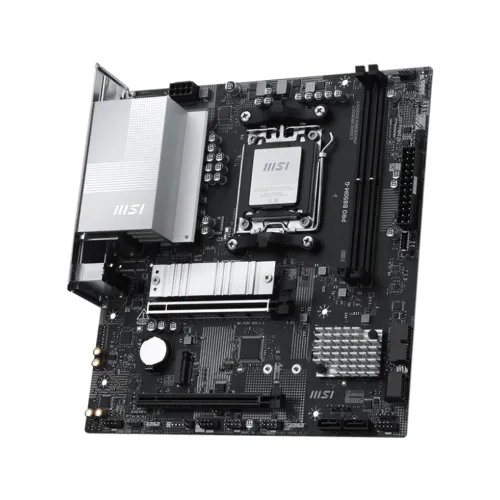

The MSI PRO B850M-G Motherboard is a powerful, feature-rich board that is ideal for professionals, gamers, and PC builders looking for great performance and dependability. The MSI PRO B850M-G AM5 Motherboard, based on the AMD B850 chipset, supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket, ensuring top-tier compatibility and future-proof performance. This MSI PRO B850M-G AM5 ATX Motherboard (mATX form factor, 226 x 243.84mm) delivers excellent power efficiency and expansion potential in a compact size. It includes two DDR5 UDIMM slots supporting up to 128GB of dual-channel memory, with speeds reaching 8200+ MT/s (OC) for Ryzen 9000 Series processors—ideal for gaming, content creation, and multitasking. For graphics, the MSI PRO B850M-G features 1x HDMI 2.1 and 1x DisplayPort 1.4, both supporting 4K @ 60Hz, ensuring stunning visuals and crystal-clear display output. It provides ultra-fast storage with 2x M.2 slots (one supporting PCIe 5.0 x4) and 4x SATA 6Gb/s ports, along with support for RAID 0, 1, and 10 configurations. The motherboard also includes Realtek 8126VB 5G LAN for lightning-fast internet speeds and a wide array of USB options, including USB 10Gbps Type-C, USB 5Gbps Type-A, and USB 2.0 ports for enhanced connectivity. Expansion capabilities are powered by two PCIe x16 slots, where the primary slot supports PCIe 5.0 x16 for advanced GPUs, ensuring maximum gaming and rendering performance. Audio quality is powered by the Realtek ALC897 7.1-Channel HD Audio Codec, delivering immersive, studio-grade sound. Other standout features include EZ Debug LEDs, EZ Memory Detection LED, Flash BIOS Button, and multiple ARGB V2 and RGB headers for easy setup, troubleshooting, and aesthetic customization. With its premium build, high-speed performance, and future-ready AM5 platform, the MSI PRO B850M-G AM5 Motherboard stands as a reliable, compact, and powerful choice for modern PC builds.
In Bangladesh, you can get original MSI PRO B850M-G AM5 mATX Motherboard From CCTV Shop. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The MSI PRO B850M-G AM5 mATX Motherboard comes with 3 years warranty.
The latest price of MSI PRO B850M-G Motherboard in Bangladesh is 0৳. You can buy the MSI PRO B850M-G Motherboard at best price from our website or visit any of our showrooms.
