| Price | 11,500৳ |
| Regular Price | 12,500৳ |
| Status | In Stock |
| Product Code | 53486 |
| Brand | VSOL |
| Main Feature | ||
| Antenna | 2.4GHz: 2x2 Internal antennas 5GHz: 3x3 Internal antennas |
|
| Button | 1 x Reset button | |
| Temperature | Working temp: -10~+50°C Working humidity:10~90%(non-condensing) |
|
| Dimensions | 240mm*240mm*48mm(L*W*H) | |
| Weight | 400g | |
| Power | ||
| DC jack input Voltage | DC 12V, 1A(optional) | |
| PoE in | PoF: DC 14~60V | |
| Power consumption | ≤12W | |
| Network | ||
| Wireless Rate | - 2.4GHz: Up to 574bps (2*2 40MHz) - 5GHz: Up to 2402Mbps (2*2 160MHz) |
|
| Wireless frequency | 2.4GHz & 5GHz dual band | |
| Wireless standards | Compliant with IEEE802.11b/g/n/ac/ax | |
| Ethernet | RJ45 connectors | |
| Others | Support Mesh Support MU-MIMO & OFDMA Support Parental control function 1XPON port(EPON PX20+ and GPON Class B+) |
|
| Manufacture Warranty | ||
| Warranty | 1 Year waranty | |

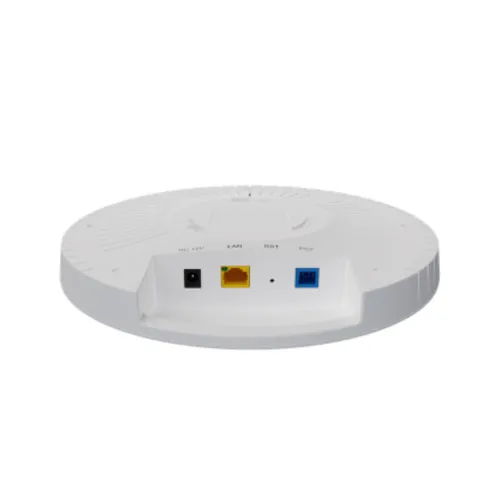

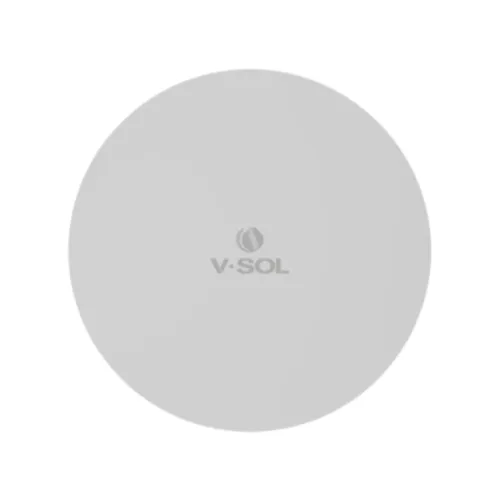

The VSOL V2801AX30C-A is a Wi-Fi 6 access point designed for high-speed fiber connectivity and indoor wireless coverage. This ceiling-mount access point combines 1XPON, PoF, Gigabit Ethernet, and Wi-Fi 6 technologies. It supports EPON PX20+ and GPON Class B+ through an SC/UPC optical interface. The ONT supports transmission distances up to 20KM and uses 1310nm upstream and 1490nm downstream wavelengths.
With AX3000 wireless performance, the VSOL V2801AX30C-A delivers 2402Mbps on 5GHz and 574Mbps on 2.4GHz. This dual band access point uses 2×2 antennas at 2.4GHz and 3×3 antennas at 5GHz. MU-MIMO and OFDMA improve network capacity across connected devices. As a 3000Mbps access point, it supports up to 256 clients, multiple SSIDs, hidden SSIDs, and Mesh networking.
The VSOL V2801AX30C-A functions as a PoF access point with DC 14–60V PoF support and local DC 12V, 1A power. Power consumption remains at or below 12W. The gigabit access point includes one auto-negotiating RJ45 port for wired connections. It supports VLAN, IPv4, IPv6, NAT, DHCP, PPPoE, static routing, and QoS. IGMP snooping, IGMP Proxy, MLD snooping, and MLD Proxy support efficient multimedia traffic management.
For network security, the VSOL V2801AX30C-A supports WPA, WPA2, WPA3, WPS 2.0, IP/MAC filtering, and URL filtering. Anti-DoS protection, loop detection, parental controls, and local access control strengthen network management. System tools include NTP, scheduled restart, Ping, Traceroute, Iperf, and WLAN packet capture. Measuring 240mm by 240mm by 48mm, the unit weighs 400g. Its operating temperature ranges from -10°C to +55°C, with 5–95% non-condensing humidity.
In Bangladesh, you can get original VSOL V2801AX30C-A AX3000 Wi-Fi 6 Access Point From CCTV Shop. We have a large collection of latest TOTOLINK Access Point to purchase. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The VSOL V2801AX30C-A AX3000 Wi-Fi 6 Access Point comes with 1 Year warranty.
The latest price of VSOL V2801AX30C-A AX3000 Wi-Fi 6 Access Point in Bangladesh is 11,500৳. You can buy the VSOL V2801AX30C-A AX3000 Wi-Fi 6 Access Point at best price from our website or visit any of our showrooms.
