close| Price | 17,000৳ |
| Regular Price | 18,700৳ |
| Status | In Stock |
| Product Code | 49284 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket | |
| Chipset | Intel H810 Chipset | |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC | |
| Expansion Slots | ||
| PCI | 1 x PCIe 4.0 x16 slot Intel® H810 Chipset 1 x PCIe 4.0 x1 slot |
|
| M.2 Socket | Total supports 2 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM | |
| Supported Memory | Supports up to 7200MT/s with Intel® Core™ Ultra 200S Plus Processors 6400MT/s with Intel® Core™ Ultra 200S Processors Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |
| Display Port (s) | 1 x DisplayPort 1.4 | |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
|
| LAN Port (s) | 1 x Intel 1Gb Ethernet port* ASUS LANGuard |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year warranty | |

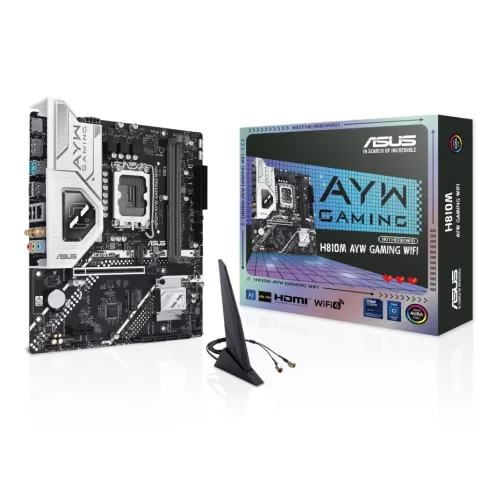

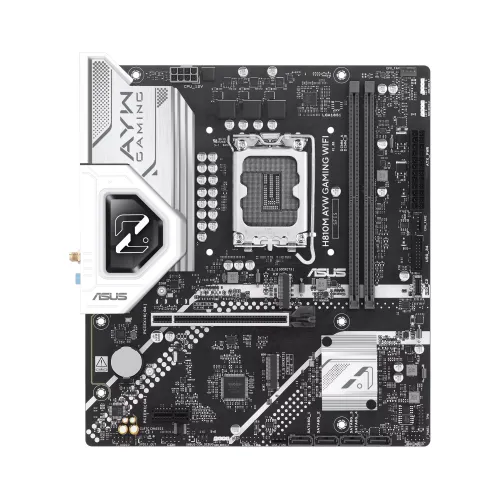

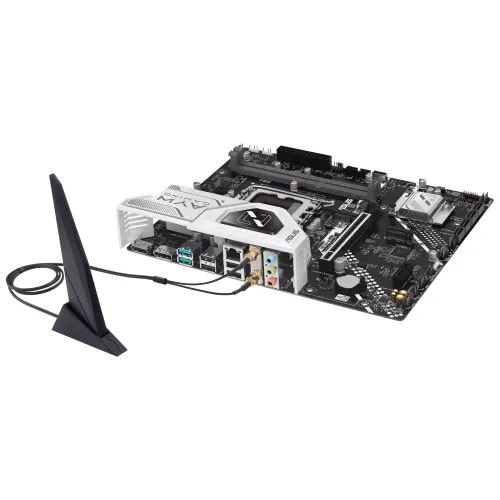

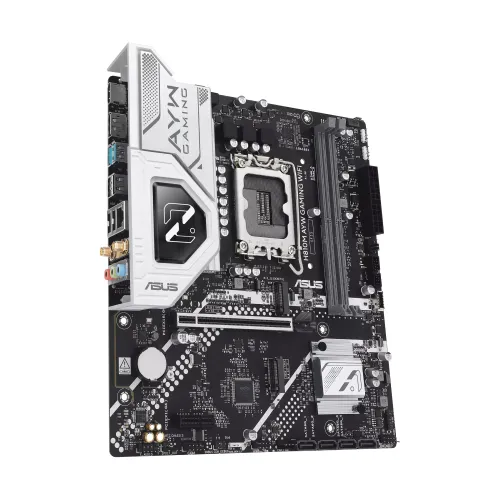

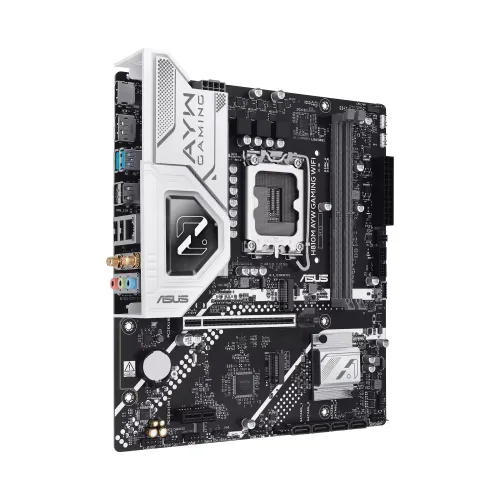

The Asus H810M AYW GAMING WIFI LGA 1851 mATX Motherboard is a compact yet powerful solution for gamers and everyday PC users. Built on the Intel H810 chipset, this Asus Intel Motherboard supports Intel Core Ultra Series 2 processors, DDR5 memory, and PCIe 4.0 expansion. With integrated Wi‑Fi 6 and Bluetooth 5.3, it delivers modern connectivity in a reliable micro‑ATX design.
The Asus H810M AYW GAMING WIFI Motherboard features the LGA 1851 socket, ensuring compatibility with Intel Core Ultra Series 2 CPUs. With dual DDR5 DIMM slots, it supports up to 128GB of high‑speed memory, optimized with ASUS AEMP II and DIMM Fit technology. This Asus Motherboard for Core Ultra processor provides smooth multitasking and efficient performance for gaming and productivity builds.
Designed for flexibility, the Asus H810M AYW Motherboard includes a PCIe 4.0 x16 SafeSlot Core+ for graphics cards and a PCIe 4.0 x1 slot for expansion. Storage is future‑ready with dual M.2 slots (PCIe 4.0 x4 and PCIe 4.0 x2) alongside four SATA 6Gb/s ports, ensuring fast NVMe SSD performance and traditional HDD support.

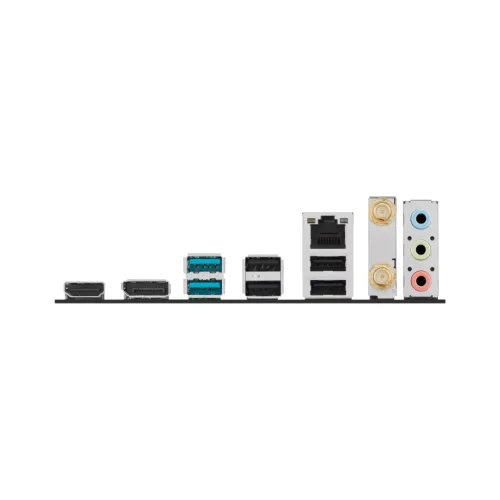

The Asus H810M AYW GAMING WIFI LGA 1851 Motherboard offers integrated Wi‑Fi 6 and Bluetooth 5.3 for seamless wireless connections, plus Intel 1Gb Ethernet for stable wired networking. The rear I/O panel includes HDMI 2.1 and DisplayPort 1.4 for high‑resolution displays, multiple USB 10Gbps and USB Type‑C ports, and audio powered by Realtek codec for clear sound. This Asus WiFi Motherboard ensures modern connectivity for gaming and everyday use.
Equipped with a 6+1+1+1 phase digital VRM design, the Asus H810M AYW GAMING WIFI Motherboard delivers stable power to critical components. Onboard heatsinks, thermal pads, and ASUS Fan Xpert 2+ software provide efficient cooling, while the compact micro‑ATX form factor makes it suitable for a wide range of cases. Aura Sync RGB headers allow users to customize lighting for a personalized build.
In Bangladesh, you can get original Asus H810M AYW GAMING WIFI Motherboard From CCTV Shop. We have a large collection of latest Asus Motherboard to Purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The Asus H810M AYW GAMING WIFI Motherboard comes with a 3-years Warranty.
The latest price of Asus H810M AYW GAMING WIFI Motherboard in Bangladesh is 17,000৳. You can buy the Asus H810M AYW GAMING WIFI Motherboard at best price from our website or visit any of our showrooms.
