close| Price | 19,000৳ |
| Regular Price | 21,500৳ |
| Status | In Stock |
| Product Code | 49305 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B850 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 8.9 inch x 8.75 inch (22.6 cm x 22.2 cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC | |
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x1 slot |
|
| M.2 Socket | 2 x M.2 slots (Key M) | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM slots | |
| Supported Memory | Supports up to 8200+MT/s(OC) with Ryzen 9000 Series Processors, 8400+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual-channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | max. 128GB | |
| Graphics | ||
| Graphics | 1 x HDMI port** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A. |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset 4 x SATA 6Gb/s ports * Specifications vary by CPU types. |
|
| RAID | AMD RAIDXpert2 Technology* Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types. |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header Back Panel I/O Ports 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Addressable RGB Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS AI Advisor ASUS DriverHub ASUS CPU-Z TurboV Core Adobe Creative Cloud (Free Trial)** Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

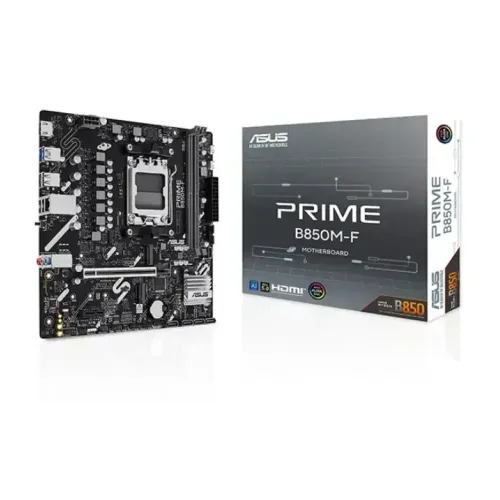

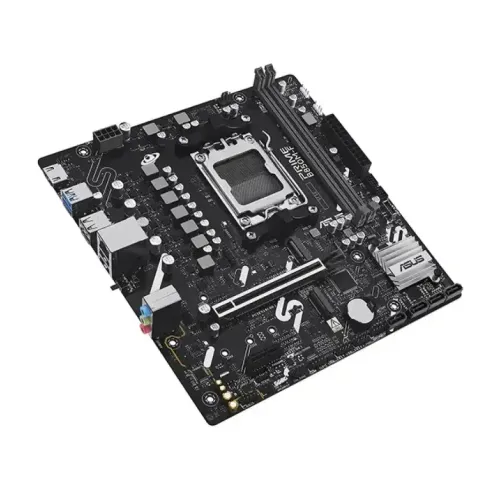

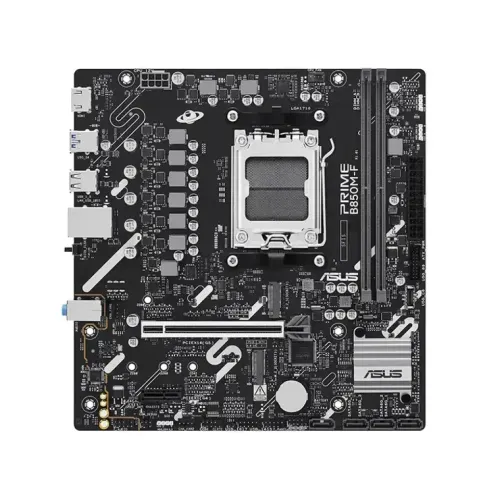

The ASUS PRIME B850M‑F‑CSM AMD AM5 mATX Motherboard is built for stability, efficiency, and long‑term reliability. Powered by the AMD B850 chipset and supporting Ryzen 9000, 8000, and 7000 series desktop processors, this ASUS PRIME B850M‑F‑CSM Motherboard delivers next‑generation performance with DDR5 memory, PCIe 5.0 expansion, and advanced connectivity in a compact micro‑ATX form factor.
Featuring the AMD AM5 socket, the ASUS PRIME B850M‑F‑CSM supports the latest Ryzen CPUs, ensuring future‑ready computing power. With dual DDR5 DIMM slots, it supports up to 128GB of memory with speeds exceeding 8200+ MT/s (OC). This Asus 850 Motherboard is optimized for multitasking, productivity, and everyday performance, making it ideal for business and home users.
The motherboard includes a PCIe 5.0 x16 slot for high‑performance graphics cards and additional PCIe 4.0 slots for expansion devices. Storage flexibility is provided by 2 M.2 slots (PCIe 5.0 and PCIe 4.0) and 4 SATA 6Gb/s ports, supporting fast NVMe SSDs and traditional drives. AMD RAIDXpert2 technology enables RAID configurations for enhanced performance and redundancy.

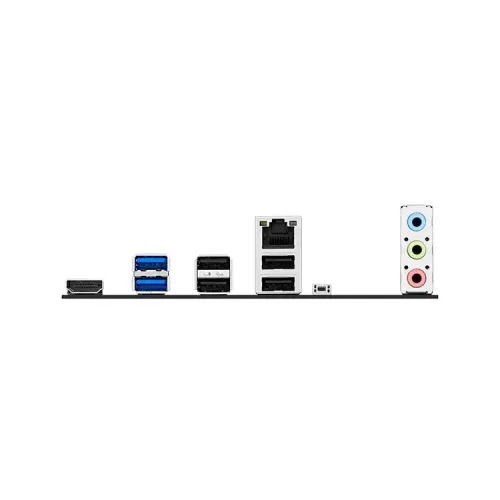

The ASUS PRIME B850M‑F‑CSM Motherboard offers modern connectivity with rear USB 5Gbps Type‑A ports, multiple USB 2.0 ports, and HDMI 2.1 supporting 4K@60Hz. Front panel options include USB Type‑C and additional USB headers for expansion. Networking is powered by Realtek 1Gb Ethernet with ASUS LANGuard protection, ensuring stable and secure connections.
Equipped with Realtek 7.1 Surround Sound HD Audio CODEC, this ASUS Prime AM5 Motherboard delivers immersive audio with support for 24‑bit/192kHz playback. Premium capacitors, audio shielding, and dedicated PCB layers ensure clear sound for entertainment, gaming, and productivity.
Built with ASUS 5X Protection III, the motherboard offers DIGI+ VRM, overvoltage protection, SafeSlot, and stainless‑steel back I/O for long‑term durability. Cooling solutions include aluminum heatsinks and multiple fan headers for optimized airflow. DIY‑friendly features such as BIOS FlashBack, Q‑DIMM, Q‑Slot, and Aura Sync RGB headers make installation and customization simple.
In Bangladesh, you can get original Asus PRIME B850M-F-CSM AMD AM5 mATX Motherboard From CCTV Shop. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at the lowest price. The Asus PRIME B850M-F-CSM AMD AM5 mATX Motherboard has 3 years of warranty.
The latest price of Asus PRIME B850M-F-CSM Motherboard in Bangladesh is 19,000৳. You can buy the Asus PRIME B850M-F-CSM Motherboard at best price from our website or visit any of our showrooms.
