close| Price | 26,000৳ |
| Regular Price | 29,150৳ |
| Status | In Stock |
| Product Code | 48240 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket | |
| Chipset | Intel B860 Chipset | |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors(series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
|
| M.2 Socket | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x DIMM | |
| Supported Memory | Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
|
| Maximum Memory | Maximum Memory Capacity 256GB | |
| Graphics | ||
| Graphics | 2 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@120Hz as specified in DisplayPort 1.4. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 2 x DisplayPort | |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1 x USB 10Gbps port (1 x Type-A ) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 | |
| Audio | 3 x Audio jacks | |

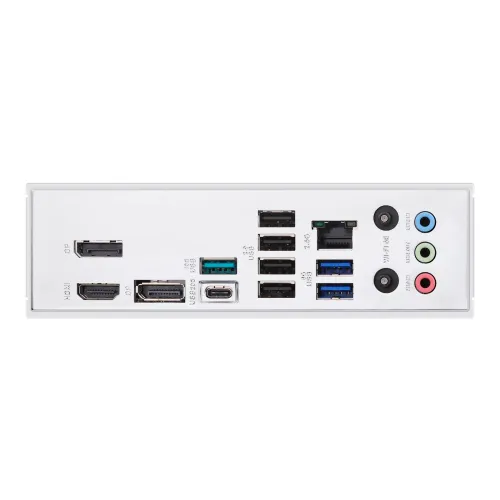

| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A ) 2 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year warranty | |

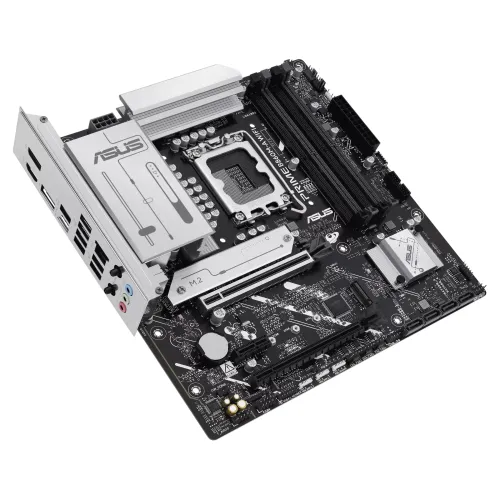

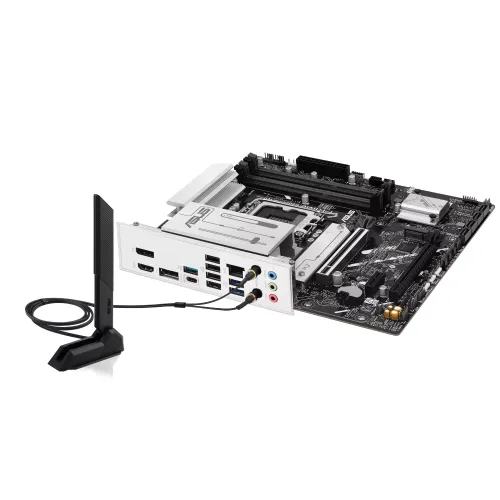

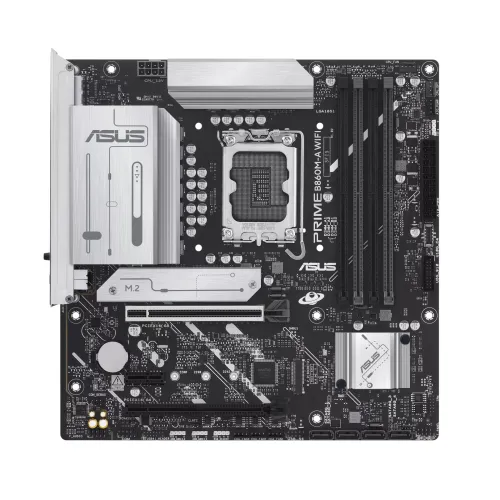

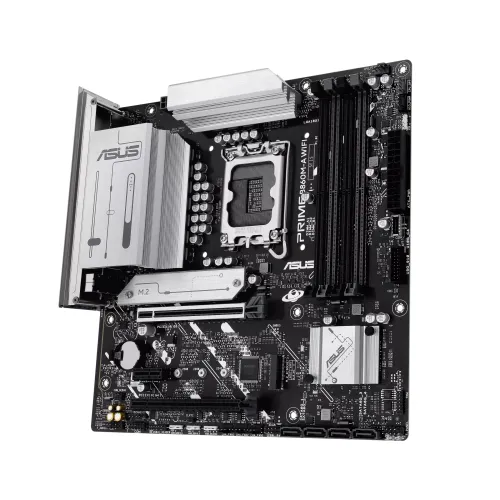

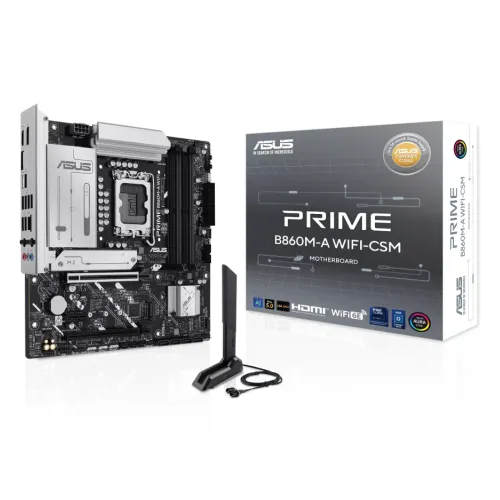

Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard delivers reliable performance for modern systems powered by Intel Core Ultra Processors Series 2 on the LGA1851 socket. The Asus Motherboard uses the Intel B860 chipset and supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0. This Asus PRIME B860M-A WIFI-CSM Motherboard features four DDR5 DIMM slots supporting up to 256GB memory with speeds reaching 8666+MT/s overclocked. It supports Non-ECC unbuffered and Clocked Unbuffered DIMMs, dual channel architecture, DIMM Fit, XMP, and ASUS Enhanced Memory Profile III. The Asus Motherboard also supports On-Die ECC function for DDR5 memory, ensuring improved stability during heavy workloads. For graphics output, it provides two DisplayPort, one HDMI, and a USB 20Gbps Type-C port supporting DisplayPort Alt Mode. It supports up to 4K at 60Hz via DisplayPort 1.4 and HDMI 2.1, and up to 4K at 120Hz through DisplayPort. Expansion includes one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot running at x4 mode, and one PCIe 4.0 x1 slot. Storage options include two M.2 slots supporting PCIe 5.0 x4 and PCIe 4.0 x4, plus four SATA 6Gb/s ports with RAID 0,1,5,10. The Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard integrates Realtek 2.5Gb Ethernet with ASUS LANGuard for stable networking. It features Wi-Fi 6E supporting 2.4, 5, and 6GHz bands, plus Bluetooth 5.3 for modern wireless connectivity. Rear and front USB connectivity includes USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, and USB 2.0 ports with power delivery up to 5V/3A. Realtek 7.1 surround audio supports 24-bit 192kHz playback with shielding and premium capacitors. ASUS 5X Protection III, Q-Design, Thermal Solution, Aura Sync, and EZ DIY features enhance durability and customization. This micro-ATX board measures 9.6 inches square and supports Windows 11 and Windows 10 64-bit systems.
In Bangladesh, you can get original Asus PRIME B860M-A WIFI-CSM Motherboard From CCTV Shop. We have a large collection of latest Asus Motherboard to Purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard comes with a 3-years Warranty.
The latest price of Asus PRIME B860M-A WIFI-CSM LGA 1851 Motherboard in Bangladesh is 26,000৳. You can buy the Asus PRIME B860M-A WIFI-CSM LGA 1851 Motherboard at best price from our website or visit any of our showrooms.
