close| Price | 19,200৳ |
| Regular Price | 21,120৳ |
| Status | In Stock |
| Product Code | 49280 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket | |
| Chipset | Intel B860 Chipset | |
| BIOS | 256(128+128) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC | |
| Expansion Slots | ||
| PCI | Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel® B860 Chipset 2 x PCIe 4.0 x1 slots |
|
| M.2 Socket | Total supports 2 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM | |
| Supported Memory | Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |
| Display Port (s) | 1 x DisplayPort 1.4 | |
| USB (s) | Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A)** Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports** * USB Type-C® power delivery output: max. 5V/3A. ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header Back Panel I/O Ports 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year warranty | |

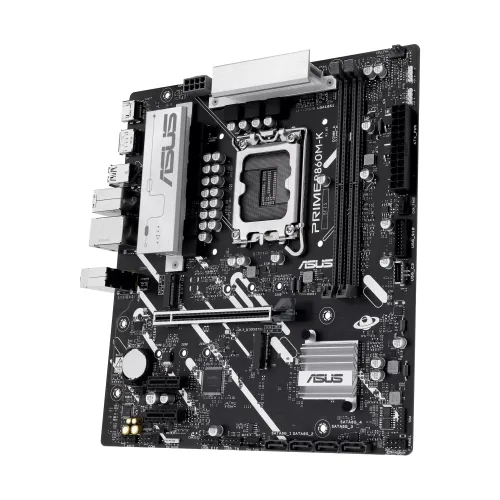

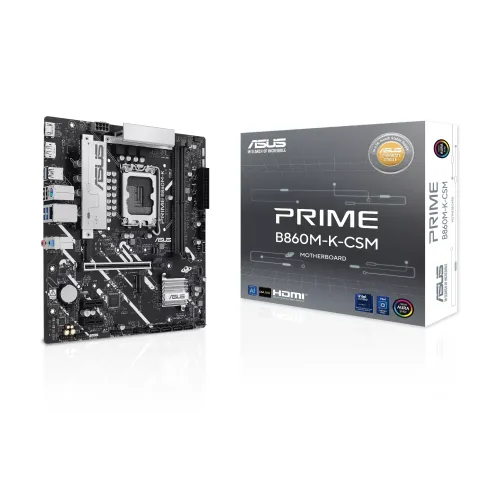

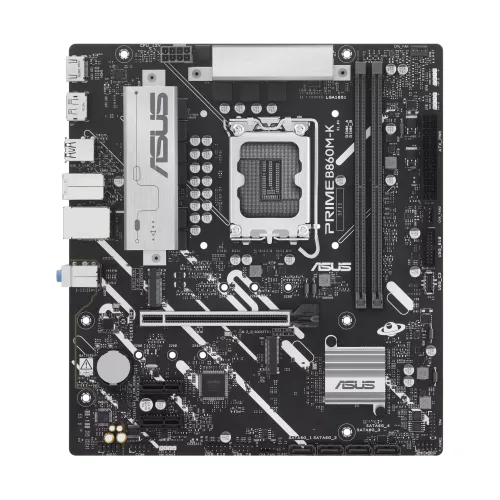

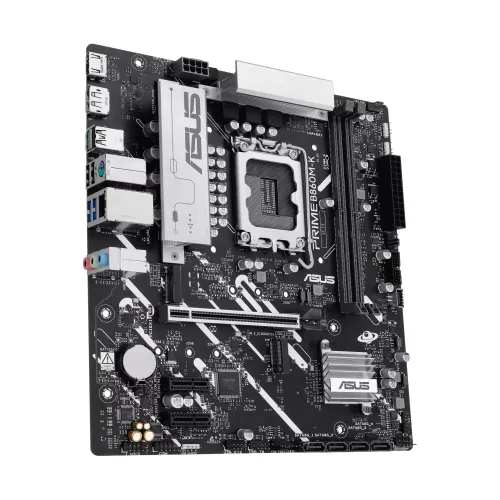

The Asus PRIME B860M‑K‑CSM LGA 1851 micro‑ATX Motherboard is designed for stability, performance, and long‑term reliability. Built on the Intel B860M chipset, this Asus Prime Intel Motherboard supports the latest Intel Core Ultra Series 2 processors, DDR5 memory, and PCIe 5.0 storage, making it a future‑ready choice for business and productivity builds.
The Asus PRIME B860M‑K‑CSM Motherboard features the LGA 1851 socket, ensuring compatibility with next‑generation Intel CPUs. With dual DDR5 DIMM slots, it supports up to 128GB of high‑speed memory, optimized with ASUS AEMP III and DIMM Fit technology. This Asus mATX motherboard delivers reliable multitasking and efficient performance for professional desktops.
Designed for flexibility, the Asus B860M Motherboard includes a PCIe 4.0 x16 SafeSlot Core+ for graphics cards and two PCIe 4.0 x1 slots for expansion. Storage is future‑proof with dual M.2 slots (PCIe 5.0 x4 and PCIe 4.0 x4) alongside four SATA 6Gb/s ports, ensuring fast NVMe SSD performance and traditional HDD support.
The Asus PRIME B860M‑K‑CSM LGA 1851 Motherboard offers Realtek 2.5Gb Ethernet for stable networking, HDMI 2.1 and DisplayPort 1.4 for high‑resolution displays, and multiple USB 3.2 Gen 2, USB 3.0, and USB Type‑C ports for modern peripherals. With integrated audio powered by Realtek ALC892/897 codec, this Asus Prime Intel Motherboard ensures clear sound for everyday use.
Equipped with a 6+1+1+1 phase digital VRM design, the Asus PRIME B860M‑K‑CSM Motherboard delivers stable power to critical components. Onboard heatsinks and ASUS Fan Xpert 2+ software provide efficient cooling, while the compact micro‑ATX form factor ensures compatibility with a wide range of cases.
In Bangladesh, you can get original Asus PRIME B860M-K-CSM Motherboard From CCTV Shop. We have a large collection of latest Asus Motherboard to Purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The Asus PRIME B860M-K-CSM Motherboard comes with a 3-years Warranty.
The latest price of Asus PRIME B860M-K-CSM Motherboard in Bangladesh is 19,200৳. You can buy the Asus PRIME B860M-K-CSM Motherboard at best price from our website or visit any of our showrooms.
