close| Price | 10,500৳ |
| Regular Price | 11,440৳ |
| Status | In Stock |
| Product Code | 49285 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
|
| Chipset | Intel H610 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC | |
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | 1 x M.2 slot | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any update ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMITM 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 port | |
| Display Port (s) | 1 x DisplayPort 1.4 | |
| VGA (s) | 1 x VGA port | |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port | |
| Supported Storage | 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

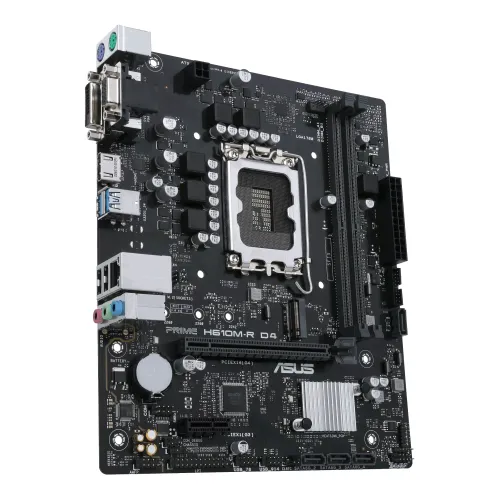

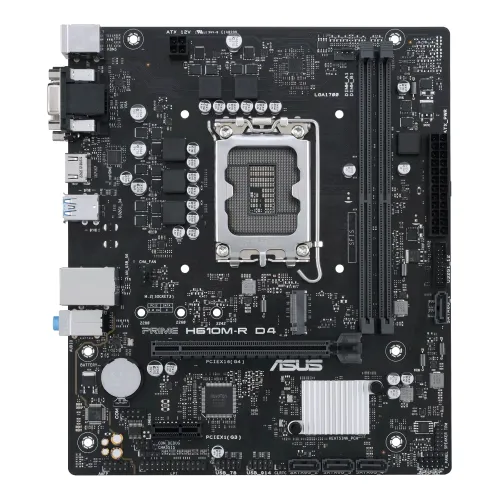

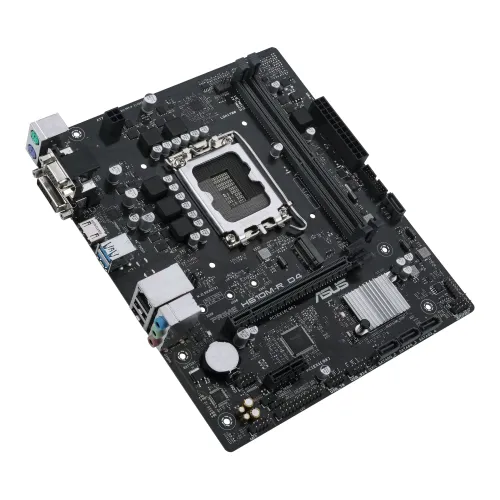

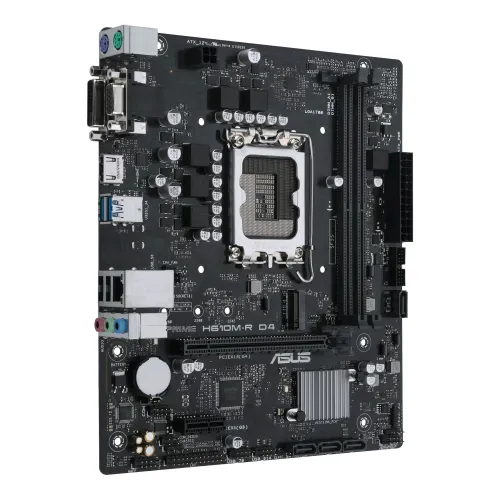

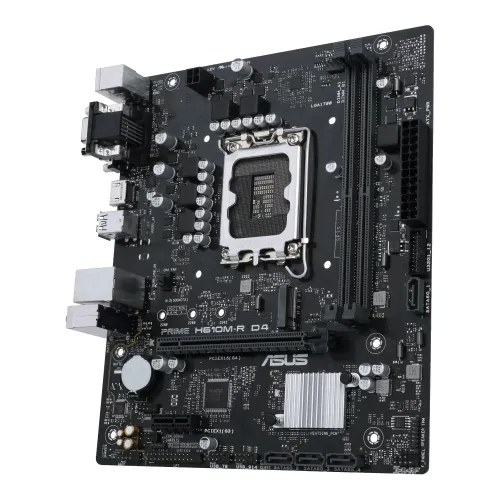

The ASUS PRIME H610M‑R D4 DDR4 LGA1700 mATX Motherboard is a dependable and cost‑effective solution for entry‑level gaming, office, and productivity builds. Powered by the Intel H610 chipset, this ASUS Intel Motherboard supports Intel Core 12th, 13th, and 14th Gen processors, offering DDR4 memory compatibility, PCIe 4.0 expansion, and M.2 storage support. Compact yet versatile, it delivers stable performance for modern computing needs.
The ASUS PRIME H610M‑R D4 Motherboard features the LGA1700 socket, ensuring compatibility with Intel Core 12th, 13th, and 14th Gen CPUs, as well as Pentium Gold and Celeron processors. With dual DDR4 DIMM slots, it supports up to 64GB of memory at speeds up to 3200MHz. This ASUS 12th/13th/14th Gen Motherboard provides smooth multitasking and reliable performance for everyday computing and productivity tasks.
Designed for flexibility, the ASUS PRIME H610M‑R D4 DDR4 LGA1700 mATX Motherboard includes a PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for expansion cards. Storage options include one M.2 slot (PCIe 3.0 x4/SATA) and four SATA 6Gb/s ports, allowing users to combine high‑speed NVMe SSDs with traditional HDDs for balanced performance and capacity.

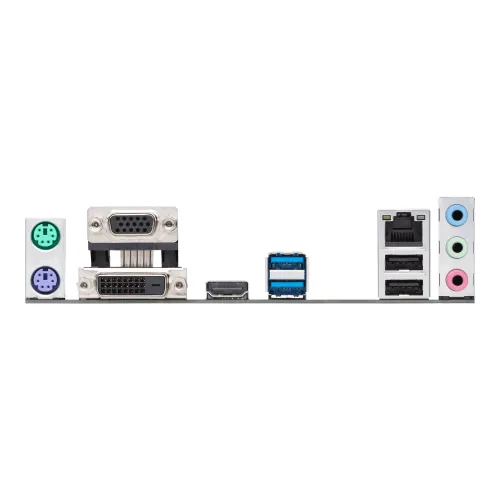

This ASUS DDR4 Motherboard offers Realtek 1Gb Ethernet for stable networking, multiple USB 3.2 Gen 1 and USB 2.0 ports for peripherals, and versatile display outputs including HDMI 2.1, DisplayPort 1.4, VGA, and DVI‑D. Audio is powered by Realtek HD codec with premium capacitors, ensuring clear sound for everyday use. Compact yet well‑equipped, this ASUS mATX Motherboard delivers essential connectivity for modern builds.
Equipped with ASUS 5X Protection III, the ASUS PRIME H610M‑R D4 Motherboard ensures long‑term durability with features like SafeSlot Core, LANGuard, stainless‑steel back I/O, and overvoltage protection. A PCH heatsink and ASUS Fan Xpert 2+ software provide efficient cooling, while DIY‑friendly features such as Q‑DIMM, Q‑Slot, and Q‑LED Core simplify installation and troubleshooting.
In Bangladesh, you can get original ASUS PRIME H610M-R D4 DDR4 LGA1700 mATX Motherboard From CCTV Shop. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The ASUS PRIME H610M-R D4 Motherboard comes with 3 years warranty.
The latest price of ASUS PRIME H610M-R D4 Motherboard in Bangladesh is 10,500৳. You can buy the ASUS PRIME H610M-R D4 Motherboard at best price from our website or visit any of our showrooms.
