close| Price | To be announced |
| Status | Up Coming |
| Product Code | 48611 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD X870E | |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS ES9219 QUAD DAC - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled) AMD Ryzen 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled) |
|
| M.2 Socket | Supports up to 5 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) NitroPath DRAM Technology |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x HDMITM port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |
| USB (s) | 2 x USB4 (40Gbps) ports support USB Type-C® display outputs* | |
| LAN Port (s) | 1 x Realtek 5Gb Ethernet 1 x Marvell AQtion 10Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth® v5.4*** |
|
| Supported Storage | Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports |
|
| RAID | AMD RAIDXpert2 Technology* Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types. |
|
| Audio | 2 x LED-illuminated audio jacks | |

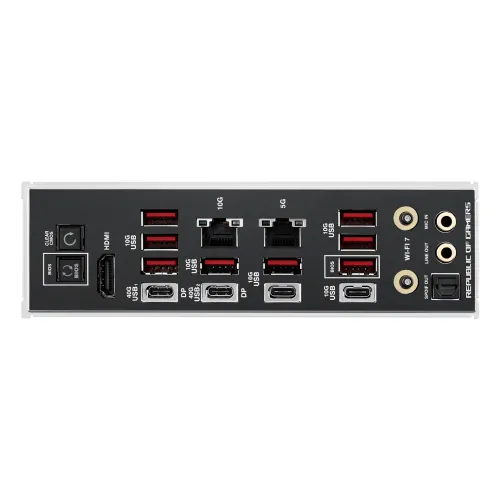

| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x VRM Heatsink Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 1 x SlimSAS connector 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 2 x Addressable Gen 2 header 1 x Alteration PCIe mode switch 2 x BCLK button 1 x BIOS Switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 12 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switchs 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Pause switch Back Panel I/O Ports 2 x USB4 (40Gbps) ports (2 x USB Type-C) 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet port 1 x Marvell AQtion 10Gb Ethernet port 2 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
|
| Others | ||
| Special Features | Extreme OC Kit - FlexKey button - LN2 Mode - ProbeIt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot - Q-DIMM.2 ASUS Thermal Solution - Fan bracket - M.2 heatsink backplate - M.2 heatsink - Metal backplate - VRM heatsink design - 3D VC M.2 Heatsink ASUS EZ DIY - Backplate - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Dual BIOS Full Color 5" LCD Display Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving - LCD Display ASUS AI Advisor ASUS DriverHub Turbo Vcore ASUS GlideX USB Wattage Watcher WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

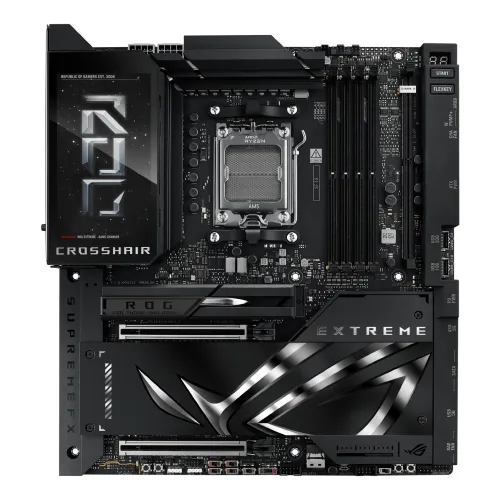

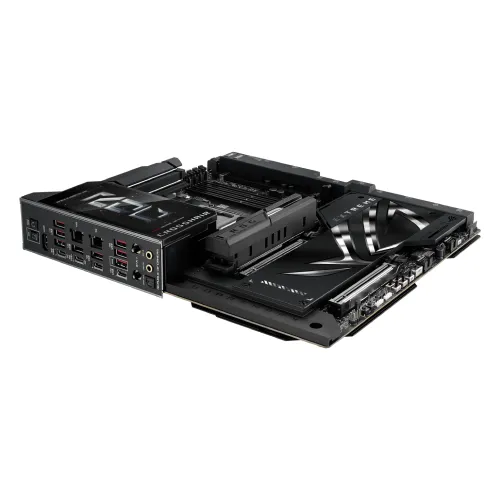

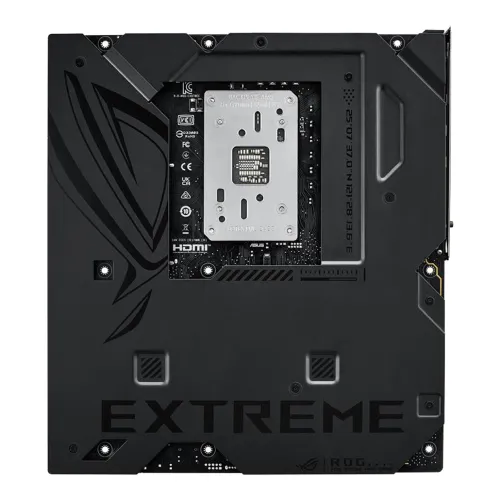

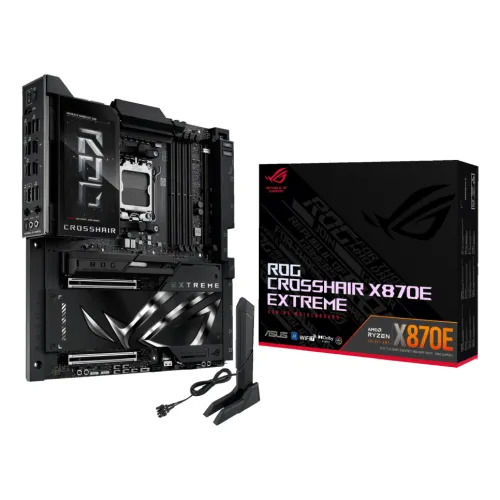

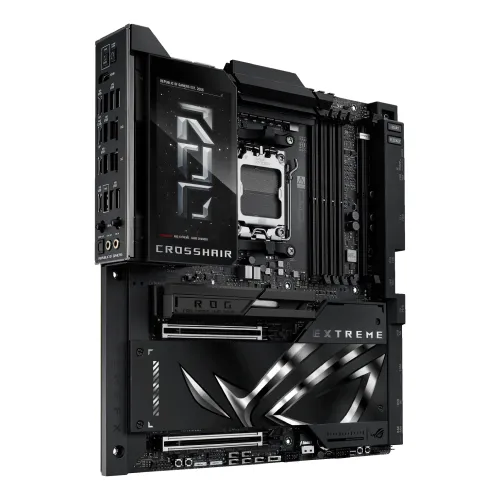

The Asus ROG CROSSHAIR X870E EXTREME AMD AM5 E-ATX Motherboard is a flagship-class platform engineered for enthusiasts, overclockers, and professionals who demand uncompromising performance, advanced AI features, and future-ready connectivity. Built on the AMD AM5 socket, it supports Ryzen 9000, 8000, and 7000 series processors, delivering next-generation computing with DDR5 memory, PCIe 5.0 expansion, and robust storage options including multiple PCIe 5.0 and 4.0 M.2 slots plus SlimSAS support. Its 20+2+2 power stage design ensures stable overclocking, while Dynamic OC Switcher and Core Flex provide precise performance tuning. Connectivity is cutting-edge with dual USB4 ports, USB 20Gbps Type-C front-panel support with Quick Charge 4+, WiFi 7, and 10 GbE LAN, making this Asus X870E Motherboard ideal for high-speed networking and data transfer. Exclusive ASUS AI features such as AI Overclocking, AI Cooling II, and AI Networking II optimize system performance intelligently, while the integrated 5-inch full-color sliding LCD display offers real-time monitoring and customization. Premium audio powered by SupremeFX, advanced cooling solutions, and DIY-friendly innovations like PCIe Slot Q-Release Slim, DIMM.2 support, and BIOS FlashBack make building and upgrading seamless. Finished in a sleek E-ATX design with reinforced components, the Asus ROG CROSSHAIR X870E EXTREME stands out as one of the most advanced Asus ROG Motherboards, combining durability, scalability, and aesthetics. For gamers, creators, and professionals seeking a future-proof platform, this Asus ROG CROSSHAIR Motherboard is the ultimate choice among Asus 870 Motherboards, delivering extreme performance and innovation in every detail.
In Bangladesh, you can get original Asus ROG CROSSHAIR X870E EXTREME AMD AM5 E-ATX Motherboard From CCTV Shop. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at the lowest price. The Asus ROG CROSSHAIR X870E EXTREME AMD AM5 E-ATX Motherboard comes with 3 years of warranty.
The latest price of Asus ROG CROSSHAIR X870E EXTREME Motherboard in Bangladesh is 0৳. You can buy the Asus ROG CROSSHAIR X870E EXTREME Motherboard at best price from our website or visit any of our showrooms.
