close| Price | 37,000৳ |
| Regular Price | 40,700৳ |
| Status | In Stock |
| Product Code | 49278 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** **support depends on the CPU types |
|
| Chipset | INTEL B860 | |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot |
|
| M.2 Socket | 2 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 | |
| Supported Memory | Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** 1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. ***** VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4a | |
| USB (s) | Rear USB (Total 8 ports) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
|
| RAID | SATA RAID 0/1/5/10. | |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers * Due to limitations in HDA bandwidth |
|

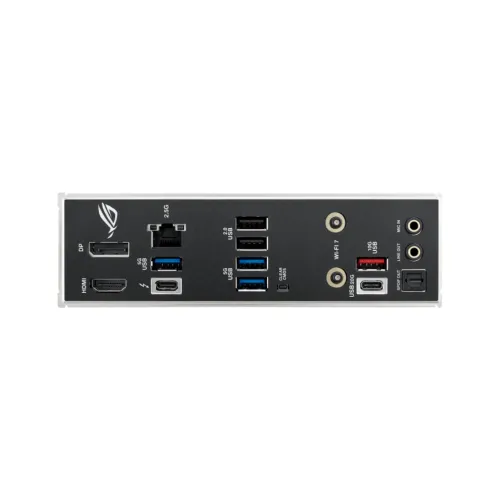

| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen2 headers 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header Back Panel I/O Ports 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x Clear CMOS button |
|
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - M.2 Q-Latch - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - Power Saving AIDA64 Extreme (60 days free trial) HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year warranty | |

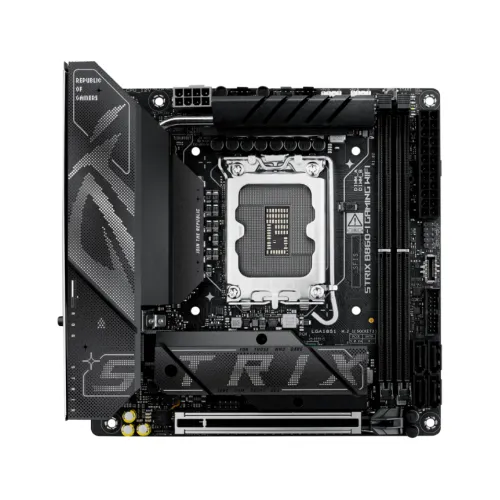

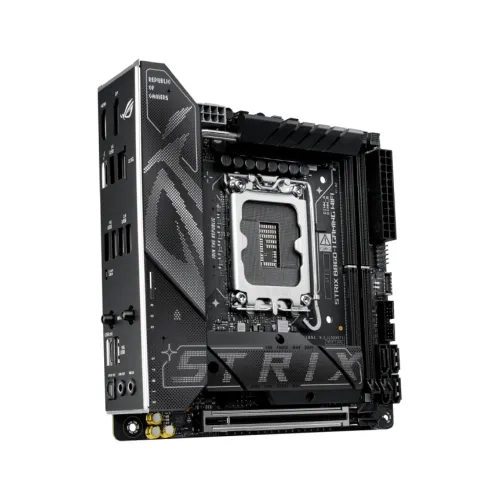

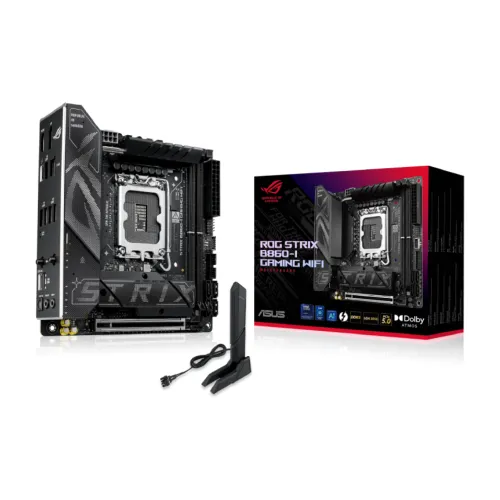

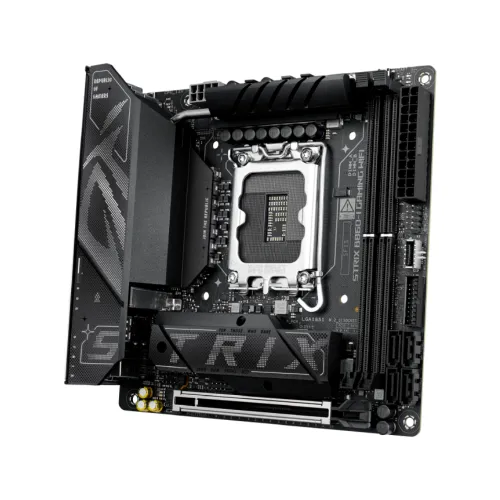

The Asus ROG STRIX B860‑I GAMING WIFI LGA 1851 Mini ITX Motherboard is a compact yet powerful solution for next‑generation Intel builds. Designed with the Intel B860 chipset, this Asus ROG STRIX Motherboard delivers advanced performance, DDR5 memory support, PCIe 5.0 expansion, and seamless wireless connectivity with Wi‑Fi 7. Perfect for small form factor PCs, this Asus ITX Motherboard combines cutting‑edge features with premium design.
Built for Intel LGA 1851 socket processors, the Asus ROG STRIX B860‑I GAMING WIFI Motherboard supports Intel Core Ultra Series 2 CPUs. With dual DDR5 DIMM slots, it offers up to 96GB capacity and speeds exceeding 9066+ MT/s (OC). Enhanced by ASUS AEMP III and DIMM Fit technology, this Asus Mini ITX Motherboard ensures stable overclocking and efficient multitasking for demanding users.
The Asus ROG STRIX B860‑I Motherboard features robust cooling solutions including large heatsinks, high‑conductivity thermal pads, and an L‑shaped heatpipe for efficient thermal management. Its Mini ITX form factor makes it ideal for compact builds, while DIY‑friendly features such as PCIe Slot Q‑Release Slim, Q‑LED indicators, and a pre‑mounted I/O shield simplify installation.
Equipped with dual M.2 slots, the Asus ROG STRIX B860‑I GAMING WIFI LGA 1851 Mini ITX Motherboard supports PCIe 5.0 and PCIe 4.0 storage for ultra‑fast data transfer. A reinforced PCIe 5.0 x16 SafeSlot ensures secure GPU installation, making this Asus Motherboard future‑ready for next‑generation graphics cards.

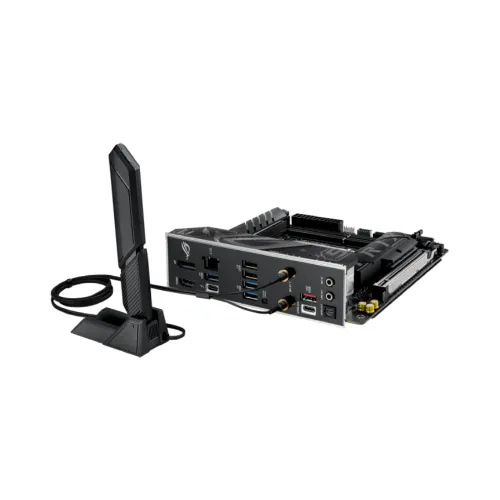

Connectivity is a highlight of this Asus WiFi Motherboard. It features Wi‑Fi 7 with ASUS WiFi Q‑Antenna, Intel 2.5Gb Ethernet, Thunderbolt 4, USB 20Gbps Type‑C, USB 10Gbps Type‑A, and HDMI 2.1 output. These options ensure seamless networking, high‑speed data transfer, and compatibility with modern peripherals.
Powered by ROG SupremeFX ALC1220P audio with Savitech amplifier, the Asus ROG STRIX B860‑I GAMING WIFI Motherboard delivers premium sound quality with Dolby Atmos support. Customizable RGB lighting with Aura Sync and dual Gen 2 ARGB headers allow users to personalize their builds with vibrant effects, making this Asus ROG STRIX Motherboard both functional and stylish.
In Bangladesh, you can get original Asus ROG STRIX B860-I GAMING WIFI LGA 1851 Mini ITX Motherboard From CCTV Shop. We have a large collection of latest Asus Motherboard to Purchase for your Desktop. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The Asus ROG STRIX B860-I GAMING WIFI ITX Motherboard comes with a 3-years Warranty.
The latest price of Asus ROG STRIX B860-I GAMING WIFI Motherboard in Bangladesh is 37,000৳. You can buy the Asus ROG STRIX B860-I GAMING WIFI Motherboard at best price from our website or visit any of our showrooms.
