close| Price | To be announced |
| Status | Up Coming |
| Product Code | 48557 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B850 Chipset | |
| BIOS | 64MB (512Mb) Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback** |
|
| Expansion Slots | ||
| PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)*** 2 x PCIe 4.0 x1 slots |
|
| M.2 Socket | Total supports 3 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Supports up to 8400+MT/s(OC)*/8200+MT/s(OC)** with Ryzen™ 9000 Series Processors, 9000+MT/s(OC)*/8600+MT/s(OC)** with Ryzen™ 8000 Series Processors, 8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*** Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x HDMI port*** |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1 x DisplayPort 1.4 | |
| USB (s) | Rear USB (Total 10 ports) 4 x USB 10Gbps ports (2 x Type-A + 2 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-Coutput (USB Type-C Current): max. 5V/3A. |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Wireless Communication module | Wi-Fi 7 (Realtek RTL8922AE) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth® v5.4 (suppports LE Audio)*** * Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports |
|
| RAID | AMD RAIDXpert2 Technology Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 |
|
| Audio | Realtek® ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback** |
|

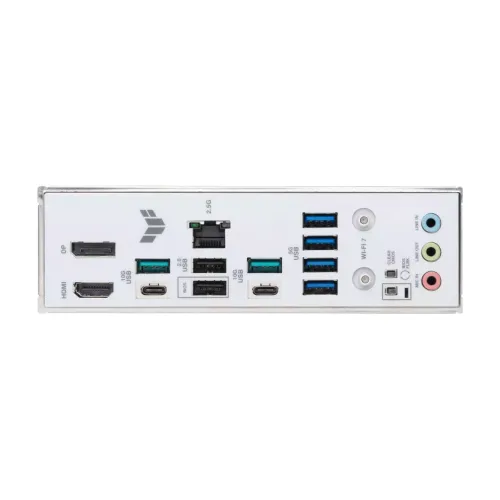

| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin Front Panel System header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports 4 x USB 10Gbps ports (2 x Type-A + 2 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
|
| Others | ||
| Special Features | Asynchronous Clock ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable RGB Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - MLO Wizard ASUS DriverHub - ASUS MB Manager - ASUS AI Advisor - TUF GAMING CPU-Z - ASUS GlideX - TurboV Core - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) DTS Audio Processing Adobe Creative Cloud (Free Trial)** UEFI BIOS Integrated WiFi Driver Support AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

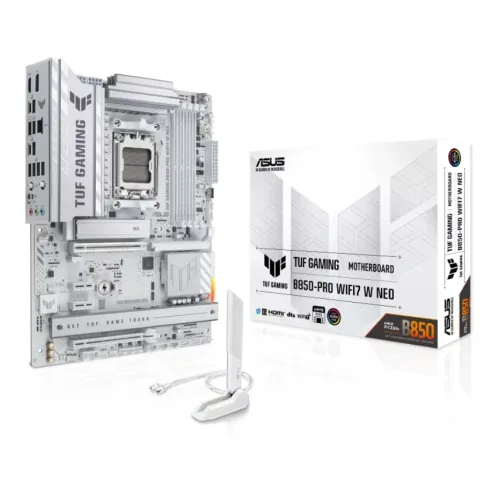

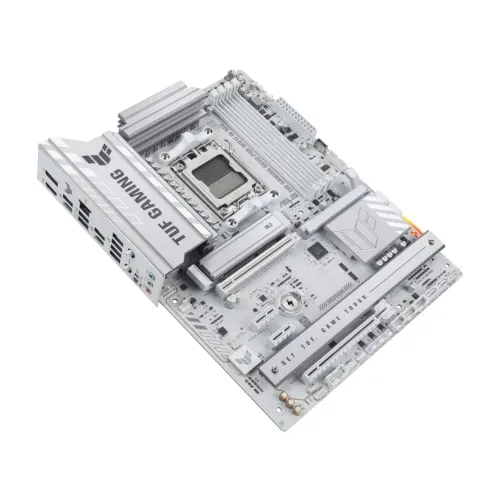

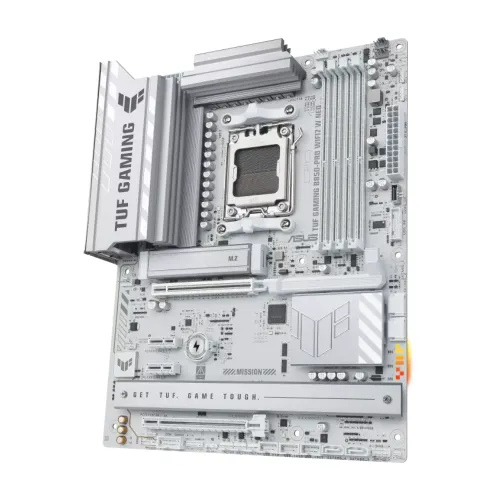

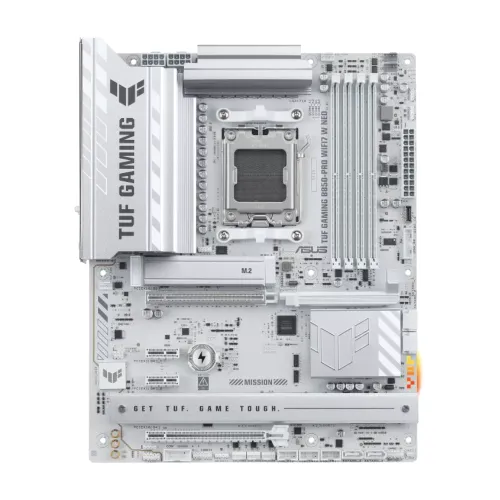

The Asus TUF GAMING B850-PRO WIFI7 W NEO Motherboard is a feature-rich ATX board engineered for gamers, creators, and professionals who demand stability, speed, and durability in their builds. Powered by the AMD B850 chipset and supporting the latest AMD AM5 processors, this Asus TUF GAMING Motherboard delivers next-generation performance with DDR5 memory support up to 256GB and speeds reaching 9000+ MT/s (OC). Expansion is future-ready with PCIe 5.0 x16 slots for cutting-edge GPUs, three M.2 slots with PCIe 5.0 and 4.0 compatibility for ultra-fast storage, and four SATA 6Gb/s ports with RAID 0/1/5/10 support. Connectivity is equally advanced, featuring WiFi 7 with Bluetooth 5.4, Realtek 2.5Gb Ethernet with TUF LANGuard, and a wide range of USB options including USB4, USB 10Gbps, USB 5Gbps, and USB 2.0 ports across both rear and front I/O. Audio is powered by the Realtek ALC1220P codec, delivering immersive 7.1 surround sound with premium capacitors and shielding for crystal-clear output. Built with military-grade components, stainless-steel back I/O, and enhanced cooling solutions such as VRM and M.2 heatsinks, this Asus 850 Motherboard ensures long-lasting endurance under heavy workloads. DIY-friendly features like a pre-mounted I/O shield, M.2 Q-Latch, PCIe Slot Q-Release, BIOS FlashBack, and Clear CMOS button simplify installation and upgrades, while Aura Sync RGB lighting adds customizable style. With its rugged design, advanced performance, and future-ready connectivity, the Asus WiFi Motherboard stands out as a reliable choice for high-performance gaming rigs and professional workstations. For builders seeking a blend of durability and aesthetics, the ASUS White Motherboard option within the TUF lineup offers a sleek alternative, combining the same military-grade reliability with a clean, modern look. Altogether, the Asus TUF GAMING B850-PRO WIFI7 W NEO Motherboard is the ultimate solution for those who want a powerful, versatile, and future-proof platform for their next PC build.
In Bangladesh, you can get original Asus TUF GAMING B850-PRO WIFI7 W NEO ATX Motherboard From CCTV Shop. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at the lowest price. The Asus TUF GAMING B850-PRO WIFI7 W NEO ATX Motherboard comes with 3 years of warranty.
The latest price of Asus TUF GAMING B850-PRO WIFI7 W NEO Motherboard in Bangladesh is 0৳. You can buy the Asus TUF GAMING B850-PRO WIFI7 W NEO Motherboard at best price from our website or visit any of our showrooms.
