close| Price | 10,400৳ |
| Regular Price | 12,500৳ |
| Status | In Stock |
| Product Code | 47310 |
| Brand | Colorful |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard | |
| Chipset | AMD B550M | |
| BIOS | 128M UEFI, support multiple languages | |
| Form Factor | M-ATX 197mm x 240mm |
|
| Audio | 5.1-Channel High Definition audio CODEC | |
| Expansion Slots | ||
| PCI | 1×PCIe 4.0 x16 slot 1×PCIe 3.0 x4 slot |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 2 x DIMM |
|
| Supported Memory | Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory Support Extreme Memory Profile (XMP) memory technology Supports dual channel memory technology |
|
| Maximum Memory | 64GB of memory (a single socket can support up to 32 GB of memory) | |
| Connector & Ports | ||
| HDMI | 1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution | |
| VGA (s) | 1×VGA interface | |
| LAN Port (s) | RTL8125 2.5Gbit LAN | |
| Supported Storage | 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel) |
|

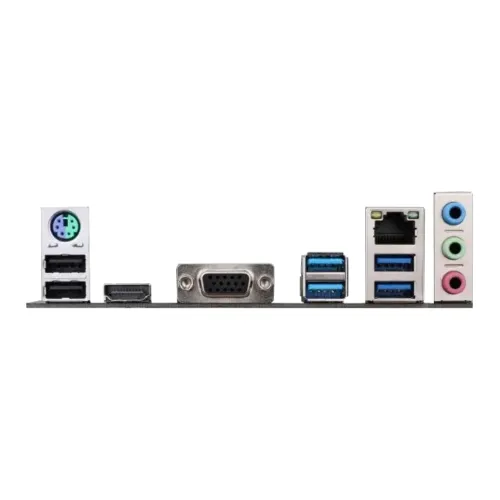

| Internal I/O Ports | Rear I/O : -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution -1×VGA interface -1×PS/2 interface -1×2.5G network interface -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×System fan pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×12V 4-pin RGB pin -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×Debug light pin -1×USB live control jumper |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

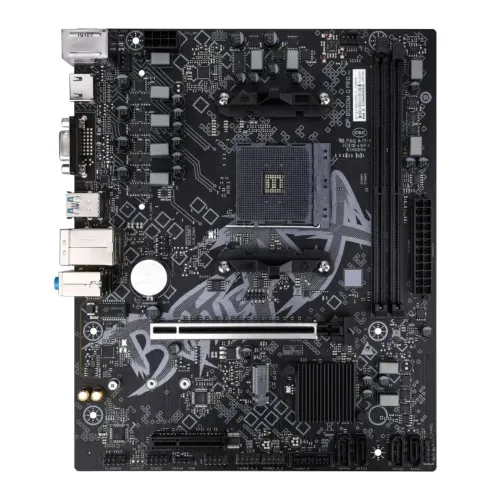

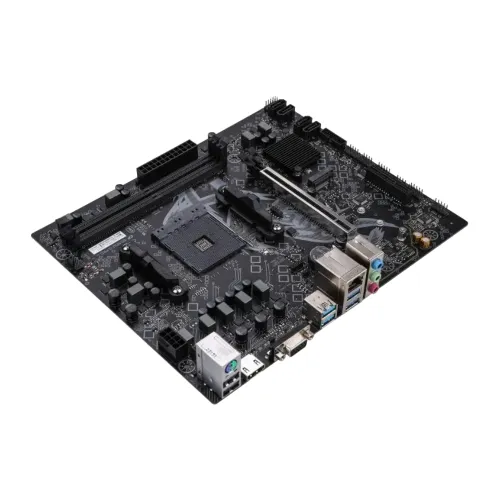

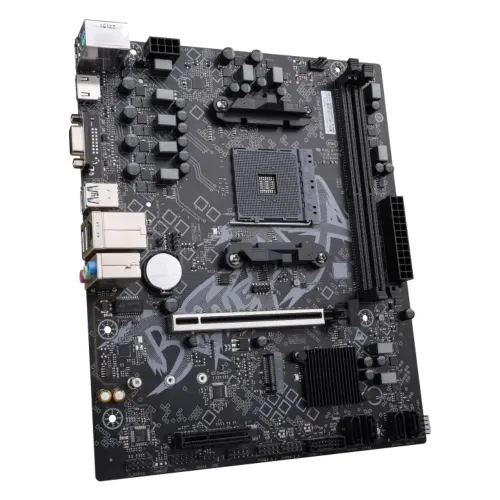

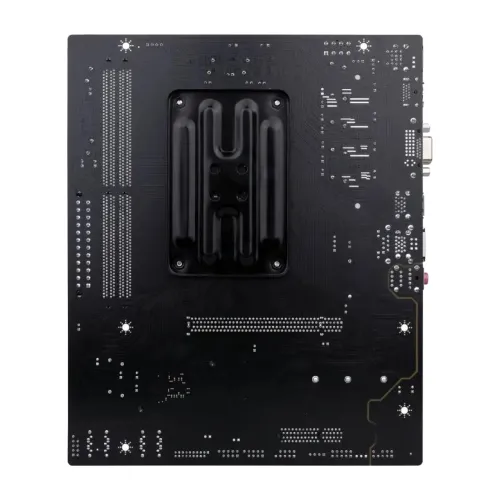

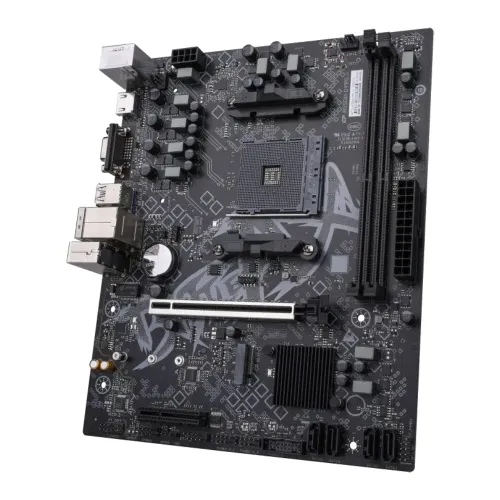

The Colorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard is a reliable Colorful Motherboard designed for AMD Ryzen processors with the AM4 socket, offering a strong balance of performance, connectivity, and durability for gaming and productivity builds. Built on the AMD B550 chipset, this Colorful AMD motherboard supports DDR4 memory up to 64GB with speeds reaching 3600MHz (OC), ensuring smooth multitasking and responsive system performance. As a compact micro-ATX board, the Colorful 550 motherboard fits easily into smaller cases while still providing robust expansion options, including a PCIe 4.0 x4 M.2 slot for high-speed SSDs, multiple SATA ports, and support for modern GPUs. Networking is reliable with a Realtek 2.5G LAN card, while the rear I/O offers HDMI 1.4 and VGA outputs along with four USB 3.2 Gen 1 Type-A ports for fast data transfer. The Colorful BATTLE-AX B550M-D PRO V14 Motherboard also integrates six major protection technologies and undergoes over 200 strict testing processes to guarantee stability and long-term reliability, while its upgraded PCB atomization process enhances durability. With its combination of DDR4 support, PCIe 4.0 storage expansion, 2.5G LAN connectivity, HDMI and VGA display options, and compact mATX design, this Colorful 850 motherboard delivers excellent value for gamers, creators, and PC enthusiasts seeking a dependable foundation for their AMD system.
In Bangladesh, you can get original Colorful BATTLE-AX B550M-D PRO V14 Motherboard From CCTV Shop. We have a large collection of the latest Colorful Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at the lowest price. The Colorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard comes with 3 years of warranty.
The latest price of Colorful BATTLE-AX B550M-D PRO V14 Motherboard in Bangladesh is 10,400৳. You can buy the Colorful BATTLE-AX B550M-D PRO V14 Motherboard at best price from our website or visit any of our showrooms.
