close| Price | 13,800৳ |
| Regular Price | 14,760৳ |
| Status | In Stock |
| Product Code | 48950 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 3000 Series Processors |
|
| Chipset | AMD B550 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory | |
| Supported Memory | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||
| HDMI | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Display Port (s) | - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz | |
| USB (s) | CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel |
|

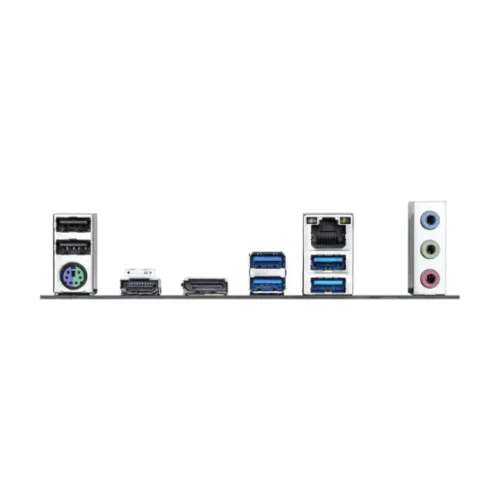

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Special Features | - @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years Warranty | |

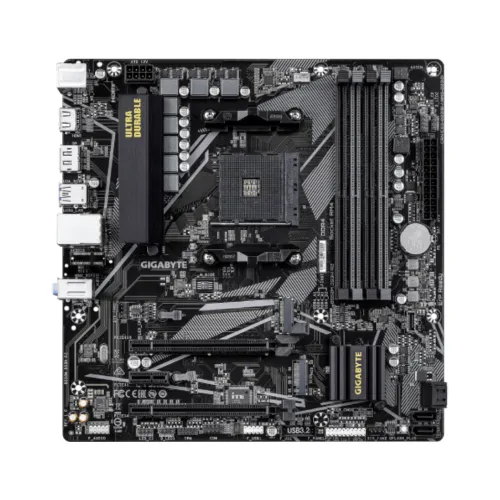

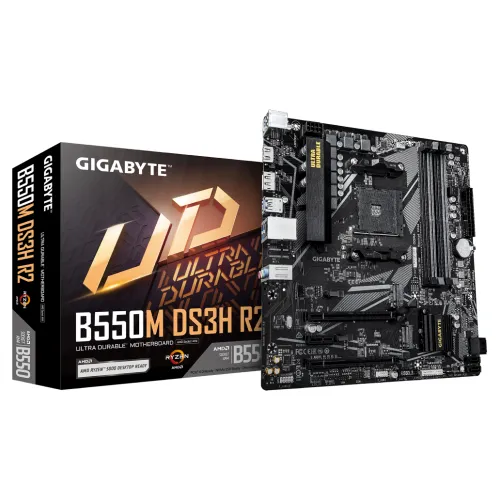

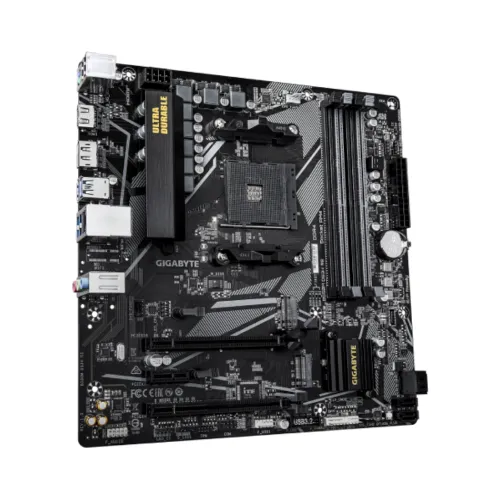

The GIGABYTE B550M DS3H R2 Motherboard is a high-performance GIGABYTE B550M DS3H R2 Micro ATX Motherboard built on the AMD B550 chipset with support for AMD Ryzen 5000, 4000 G-Series, and 3000 Series processors, making it an ideal choice for gamers and creators seeking stability and speed. This GIGABYTE 550 Motherboard supports up to 128 GB DDR4 memory with high overclocking speeds, dual M.2 connectors with PCIe 4.0/3.0 support, and 4 SATA 6Gb/s ports with RAID 0/1/10 capability for flexible storage solutions. Expansion is robust with a PCIe 4.0 x16 slot for graphics cards, additional PCIe 3.0 slots, and integrated graphics outputs including DisplayPort (5120×2880@60Hz) and HDMI (4096×2160@60Hz). Connectivity includes USB 3.2 Gen 1 ports, USB Type-C header, USB 2.0 ports, and Realtek GbE LAN, while audio is powered by the Realtek ALC1220 codec delivering 7.1-channel HD sound. Enhanced with features like RGB Fusion lighting, Q-Flash Plus BIOS update utility, and Smart Backup tools, this Gigabyte AMD Motherboard offers durability, customization, and future-ready performance in a compact micro ATX form factor, making it a reliable foundation for powerful PC builds.
In Bangladesh, you can get original GIGABYTE B550M DS3H R2 mATX AMD Motherboard From CCTV Shop. We have a large collection of latest Gigabyte AMD Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The GIGABYTE B550M DS3H R2 mATX AMD Motherboard Comes with 3 Years Warranty.
The latest price of GIGABYTE B550M DS3H R2 Motherboard in Bangladesh is 13,800৳. You can buy the GIGABYTE B550M DS3H R2 Motherboard at best price from our website or visit any of our showrooms.
