| Price | 20,500৳ |
| Regular Price | 22,550৳ |
| Status | In Stock |
| Product Code | 37027 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 | |
| Supported Memory | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
|
| Maximum Memory | Supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 1 x DisplayPort | |
| D-Sub (s) | 1 x D-Sub port | |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Audio | 3 x audio jacks | |

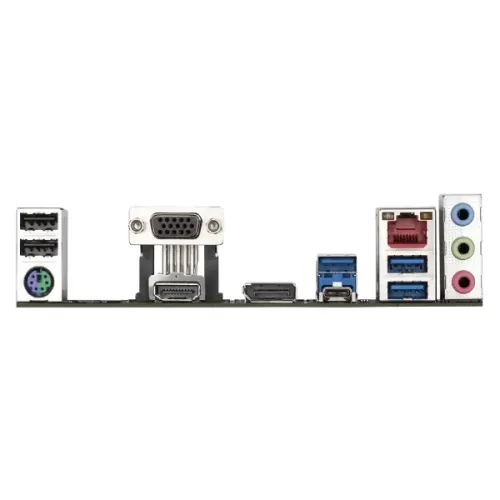

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip headers 1 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years Warranty | |

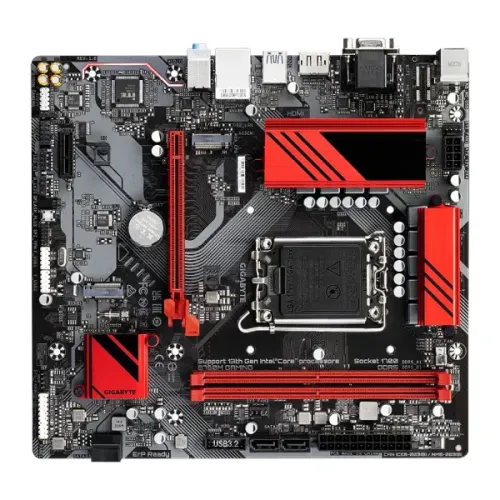

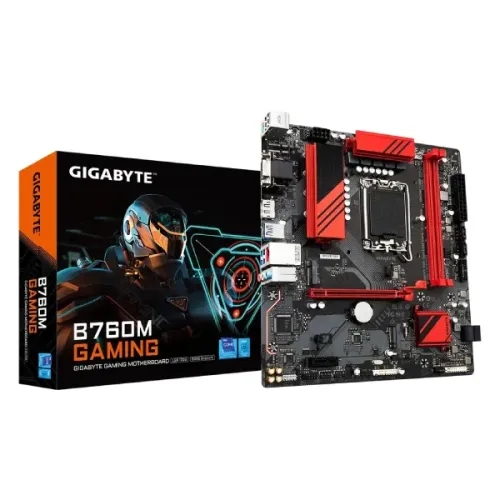

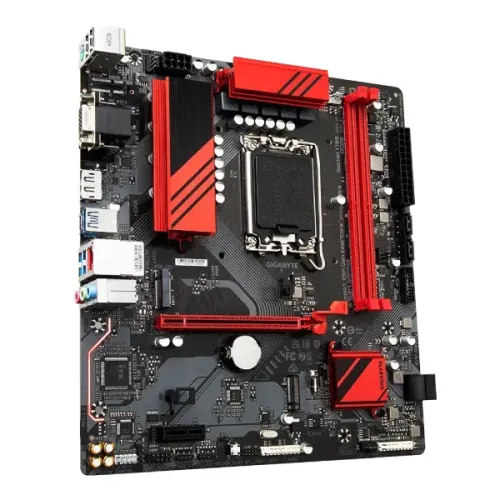

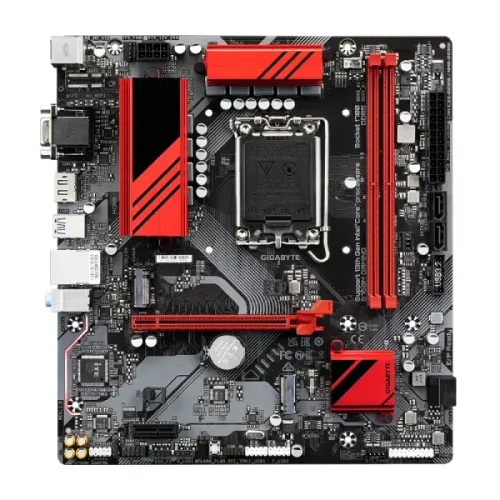

The GIGABYTE B760M GAMING DDR5 Micro ATX motherboard is a powerful and versatile platform designed for gaming enthusiasts and power users. It supports 14th, 13th, and 12th Gen Intel processors using the LGA1700 socket, offering compatibility with the latest technologies. With support for up to 2 DDR5 memory modules, it can accommodate a maximum capacity of 128GB and speeds up to 8000MHz (OC), providing ample room for multitasking and high-performance applications. The motherboard features multiple graphics outputs, including 1x HDMI, 1x DisplayPort, and 1x D-Sub port, catering to various display needs. It is equipped with a Realtek 2.5GbE LAN chip, enabling fast network speeds of 2.5 Gbps, 1 Gbps, and 100 Mbps. The Hybrid 6+2+1 Phases Digital VRM Solution ensures stable power delivery, while the dual-channel DDR5 support with XMP compatibility allows for efficient memory performance. For storage, the board includes two PCIe 4.0 x4 M.2 connectors, offering high-speed SSD storage options. The EZ-Latch quick-release design on the PCIe 4.0x16 slot makes installing and removing expansion cards hassle-free. The motherboard also boasts Smart Fan 6 technology, which features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for quiet operation. Additionally, Q-Flash Plus enables BIOS updates without the need to install the CPU, memory, or graphics card, simplifying system maintenance. With its comprehensive feature set and support for cutting-edge components, the GIGABYTE B760M GAMING DDR5 Micro ATX motherboard is an excellent choice for those seeking a reliable and future-proof platform.
In Bangladesh, you can get the original GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard From CCTV Shop. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at the lowest price. The GIGABYTE B760M GAMING DDR5 Motherboard comes with 3 years warranty.
The latest price of GIGABYTE B760M GAMING Motherboard in Bangladesh is 20,500৳. You can buy the GIGABYTE B760M GAMING Motherboard at best price from our website or visit any of our showrooms.
