close| Price | 17,500৳ |
| Regular Price | 18,990৳ |
| Status | In Stock |
| Product Code | 48208 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors |
|
| Chipset | AMD B840 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
|
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM sockets | |
| Supported Memory | Support for DDR5 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
| Maximum Memory | up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz Support for DisplayPort 1.4 version and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 2 x DisplayPorts | |
| USB (s) | CPU: 2 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 2 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x audio jacks 1 x front panel audio header |
|

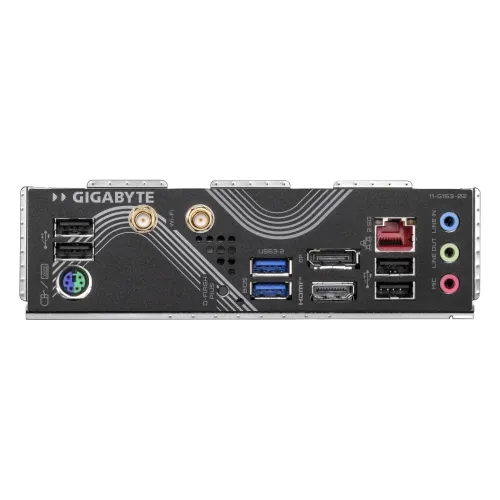

| Internal I/O Ports | Internal I/O Connectors 1x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 1 x HDMI port (Note) 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

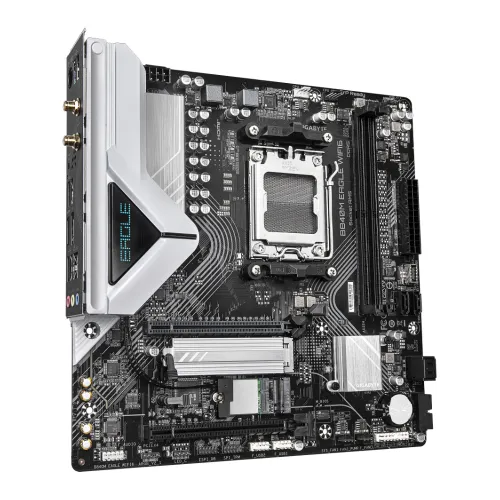

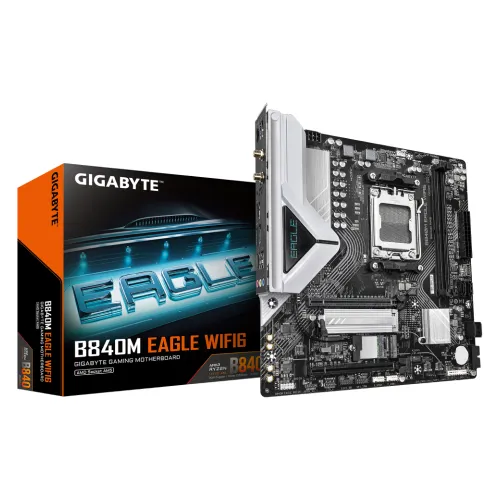

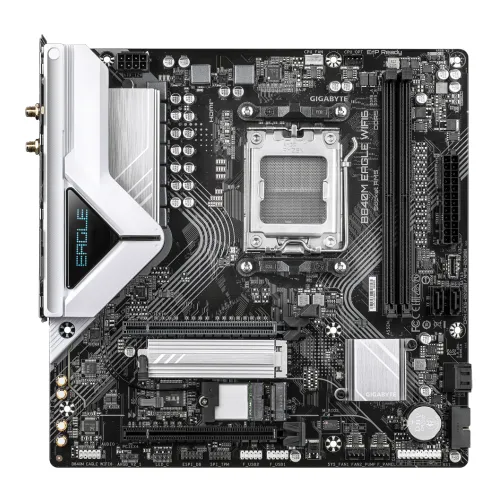

The GIGABYTE B840M EAGLE WIFI6 AM5 Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AMD Socket AM5 platform. Powered by the AMD B840 chipset, the GIGABYTE Motherboard ensures stable computing with a digital 5+2+2 phases VRM solution. Dual channel DDR5 architecture supports up to 128GB across two DIMMs with speeds reaching 7600 MT/s overclocked. AMD EXPO and XMP profiles optimize memory, while D5 Bionic Corsa enhances infinite memory performance. The GIGABYTE B840M EAGLE WIFI6 Motherboard has EZ-Latch PCIe and M.2 slots feature quick release and screwless design for effortless installation. M.2 heatsinks also use screwless EZ-Latch design, supported by VRM Thermal Armor Advanced and M.2 Thermal Guard. The GIGABYTE Motherboard includes two M.2 connectors and four SATA 6Gb/s ports with RAID 0,1,5,10 support. PCIe UD Slot provides 10X strength for graphics cards and improved heat dissipation. The GIGABYTE B840M EAGLE WIFI6 Motherboard integrated AMD Radeon Graphics supports DisplayPort 1.4 at 3840x2160@144Hz and HDMI 2.1 at 4096x2160@60Hz with HDR. Realtek 2.5GbE LAN and Realtek Wi-Fi 6 RTL8851BE with Bluetooth 5.3 deliver fast networking. Expansion includes PCIe 4.0 x16 CPU slot and PCIe 3.0 x4 chipset slot. USB connectivity covers USB 3.2 Gen1, USB Type-C header, and multiple USB 2.0 ports. The GIGABYTE B840M EAGLE WIFI6 AM5 Motherboard has internal connectors include ATX power, fan and pump headers, RGB Gen2 headers, TPM header, and Clear CMOS jumper. Back panel offers PS/2, Q-Flash Plus button, SMA antenna connectors, RJ-45, audio jacks, HDMI, and DisplayPort. Licensed AMI UEFI BIOS with 256 Mbit flash supports Q-Flash, Smart Backup, and GCC software. Micro ATX form factor ensures compatibility with Windows 11 and Windows 10 64-bit systems.
In Bangladesh, you can get original GIGABYTE B840M EAGLE WIFI6 Motherboard From CCTV Shop. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at the lowest price. The GIGABYTE B840M EAGLE WIFI6 Motherboard comes with 3 years of warranty.
The latest price of GIGABYTE B840M EAGLE WIFI6 AM5 Motherboard in Bangladesh is 17,500৳. You can buy the GIGABYTE B840M EAGLE WIFI6 AM5 Motherboard at best price from our website or visit any of our showrooms.
