close| Price | 24,000৳ |
| Regular Price | 25,000৳ |
| Status | In Stock |
| Product Code | 54227 |
| Brand | Gospower |
| General Information | ||
| Protection | PV String Current Monitoring PV Insulation Resistance Detection Residual Current Monitoring PV Reverse Polarity Protection Anti-islanding Protection AC Short Circuit Protection AC Overvoltage Protection DC Switch |
|
| Noise Level | <20dB | |
| Output | ||
| AC Output | Nominal Output Power (W): 1000 Nominal Output Apparent Power (VA): 1000 Nominal Output Voltage (V): 220 / 230 / 240, L / N / PE Nominal AC Grid Frequency (Hz): 50 / 60 Max. Output Current (A): 4.6 |
|
| Input (Charging) | ||
| DC Input | Max. Input Voltage (V): 600 MPPT Operating Voltage Range (V): 40 ~ 450 Start-up Voltage (V): 50 Max. Input Current per MPPT (A): 16 Number of MPP Trackers: 1 |
|
| Environment | ||
| Operating Temperature | 25 ~ +60 (°C) | |
| Warranty Information | ||
| Warranty | 3 years | |

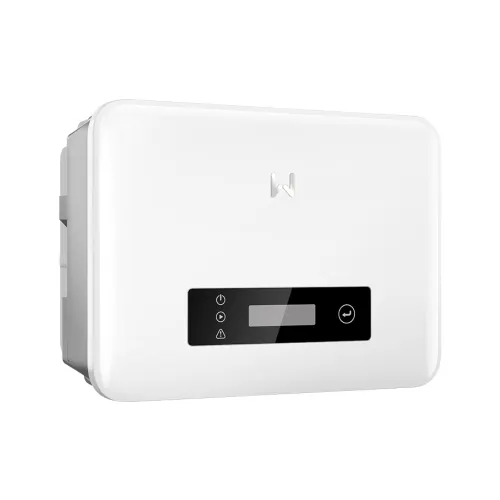

The GoodWe GW1000-XS-30 1kW Single-Phase On-Grid Solar Inverter delivers a nominal output power of 1000W for residential solar power systems. It supports output voltages of 220V, 230V, and 240V, with a grid frequency of 50Hz or 60Hz. The 1000W Solar inverter achieves a maximum efficiency of 97.1%, helping convert solar energy into usable electricity. Its compact design supports single-phase grid-connected solar installations.
Featuring one Maximum Power Point Tracking (MPPT) tracker, the GoodWe GW1000-XS-30 optimizes solar panel power extraction. Its MPPT operating voltage range spans 40V to 450V, with a maximum input voltage of 600V. The Single-Phase inverter starts operating at 50V and supports a maximum input current of 16A per MPPT. These specifications support efficient energy conversion across suitable solar panel configurations.
The GoodWe GW1000-XS-30 Solar inverter includes several protection mechanisms for solar system operation. PV string current monitoring, insulation resistance detection, and residual current monitoring help identify electrical issues. Additional features include PV reverse polarity protection, anti-islanding protection, AC short-circuit protection, and AC overvoltage protection. An integrated DC switch supports DC isolation during maintenance, subject to installation procedures.
Operating at a noise level below 20dB, the GoodWe GW1000-XS-30 produces minimal audible disturbance. It supports an operating temperature range of -25°C to +60°C, suitable for various environmental conditions. The On-Grid inverter delivers a maximum AC output current of 4.6A and a nominal apparent power of 1000VA. These specifications make it suitable for residential on-grid solar installations requiring efficient power conversion and multiple electrical safeguards.
In Bangladesh, you can get original GoodWe GW1000-XS-30 1kW Solar Inverter From CCTV Shop. We have a large collection of latest Solar Inverter to purchase. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The GoodWe GW1000-XS-30 1kW Solar Inverter comes with 5 years warranty.
The latest price of GoodWe GW1000-XS-30 1kW Solar Inverter in Bangladesh is 24,000৳. You can buy the GoodWe GW1000-XS-30 1kW Solar Inverter at best price from our website or visit any of our showrooms.
