close| Price | 43,000৳ |
| Regular Price | 47,300৳ |
| Status | In Stock |
| Product Code | 54179 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|
| M.2 Socket | 4x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x UDIMM | |
| Supported Memory | Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 3x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126VB 5G LAN | |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
|
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years warranty | |

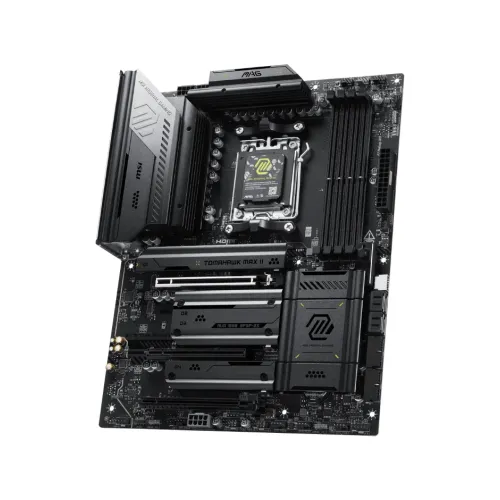

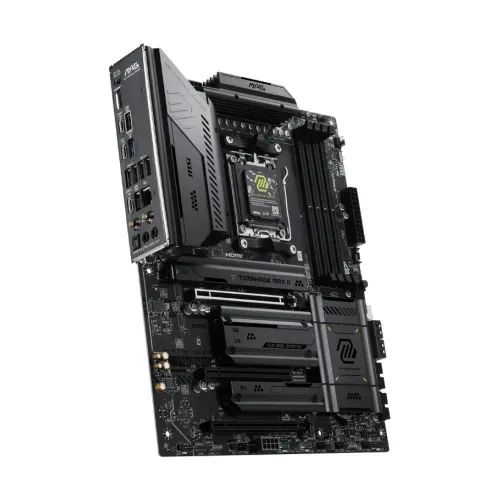

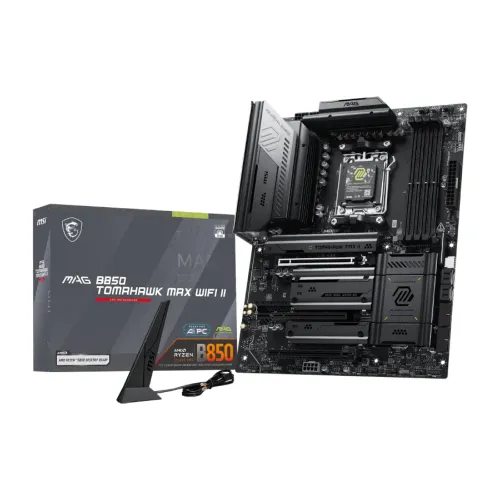

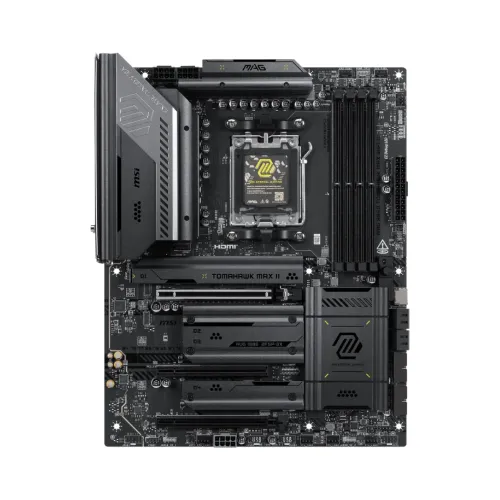

The MSI MAG B850 TOMAHAWK MAX WIFI II AM5 ATX Motherboard is built on the AMD B850 chipset for Socket AM5 and supports Ryzen 9000, 8000, and 7000 series desktop processors. This MSI B850 TOMAHAWK MAX WIFI II motherboard uses the ATX form factor and has four DDR5 memory slots, four M.2 slots, Wi-Fi 7, and 5G LAN. As an MSI 850 Motherboard in the MAG series, it covers the mid-range AM5 platform with current memory, storage, and wireless standards.
The four UDIMM slots on the MSI MAG B850 TOMAHAWK MAX WIFI II take DDR5 memory up to 256GB. Supported speeds run from 4800 to 5600 MT/s under JEDEC and from 5600 up to 8400 MT/s with overclocking. On Ryzen 9000 series processors, a single-rank module in one slot per channel can reach 8400+ MT/s, while the other configurations listed reach up to 6400+ MT/s. The board also has two Direct OC jumpers for base clock adjustment.
Storage is handled by four M.2 sockets and four SATA 6G ports. M.2_1 and M.2_2 connect to the CPU at PCIe 5.0 x4, M.2_3 runs at PCIe 4.0 x2, and M.2_4 runs at PCIe 4.0 x4. M.2_1 also fits 22110 drives, and RAID 0, 1, and 10 are supported for NVMe devices. For expansion, the first PCIe x16 slot runs at PCIe 5.0 x16 on Ryzen 9000 and 7000 series processors, and the other two slots run at PCIe 4.0 x4 and PCIe 3.0 x1 from the chipset.

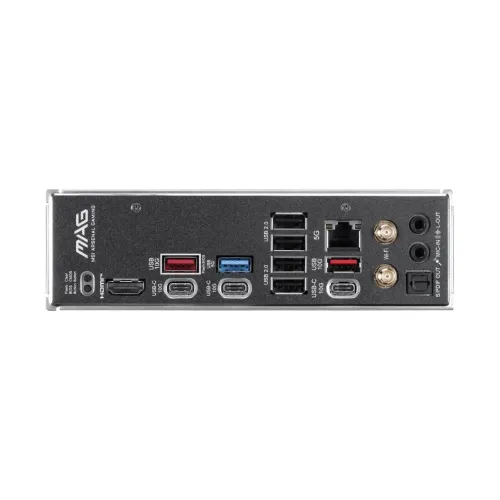

This MSI B850 Wifi motherboard comes with a pre-installed Wi-Fi 7 module that supports 802.11be, 320MHz channels on the 6GHz band, MU-MIMO, MLO, and speeds of up to 5.8Gbps, along with Bluetooth 5.4. Wired networking uses a Realtek 8126VB 5G LAN port. The rear panel of the MSI B850 TOMAHAWK MAX WIFI II AM5 motherboard has one HDMI 2.1 output, two USB 10Gbps Type-A ports, three USB 10Gbps Type-C ports, one USB 5Gbps Type-A port, and four USB 2.0 ports. A front USB 20Gbps Type-C header is also included, and audio comes from a Realtek ALC4080 codec with 7.1-channel output and S/PDIF.
In Bangladesh, you can get the original MSI MAG B850 TOMAHAWK MAX WIFI II AM5 ATX Motherboard From CCTV Shop. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at the lowest price. The MSI MAG B850 TOMAHAWK MAX WIFI II AM5 ATX Motherboard has 3 years Warranty.
The latest price of MSI MAG B850 TOMAHAWK MAX WIFI II Motherboard in Bangladesh is 43,000৳. You can buy the MSI MAG B850 TOMAHAWK MAX WIFI II Motherboard at best price from our website or visit any of our showrooms.
