close| Price | To be announced |
| Status | Up Coming |
| Product Code | 48539 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD X870E | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) |
|
| M.2 Socket | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x UDIMM | |
| Supported Memory | Maximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz* |
|
| Connector & Ports | ||
| HDMI | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* |
|
| Display Port (s) | 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz* |
|

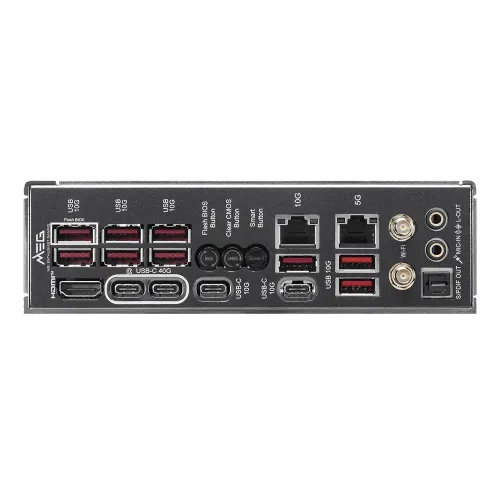

| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
|
| LAN Port (s) | 1x Marvell AQC113CS 10Gbps LAN 1x Realtek 8126 5Gbps LAN |
|
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
|
| Supported Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) * The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors. |
|
| RAID | Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices |
|
| Internal I/O Ports | Internal IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 1x EZ Digi-Debug LED 4x EZ Debug LED 1x EZ Memory Detection LED 1x EZ LED Control switch |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

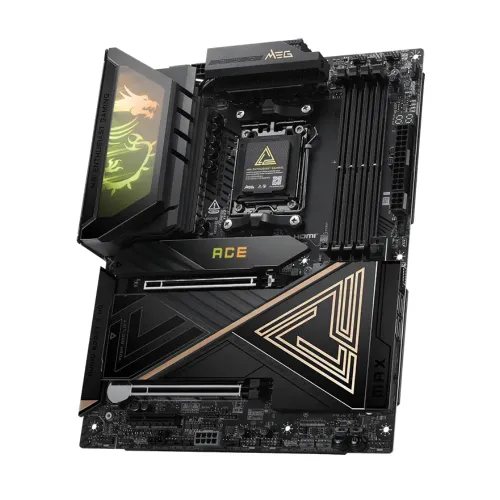

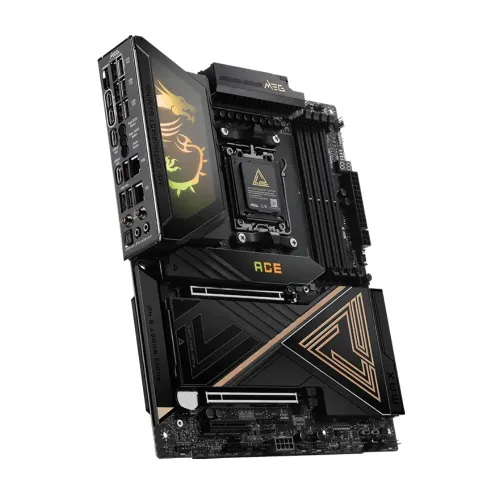

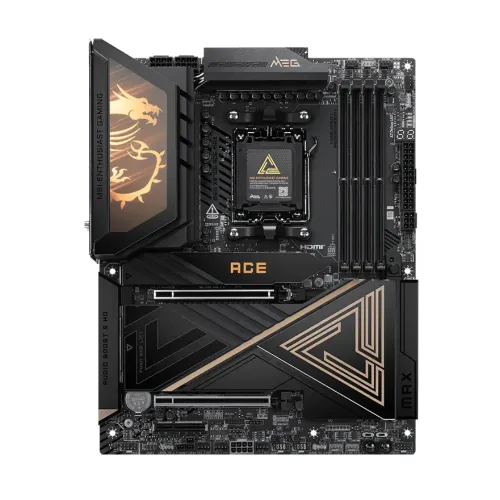

The MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard is a flagship MSI Motherboard built for enthusiasts who demand extreme performance, future-ready connectivity, and uncompromising stability. Powered by the advanced AMD X870E chipset with support for the latest AM5 socket, it is fully compatible with AMD Ryzen 9000, 8000, and 7000 series processors, making it a future-proof platform for gaming and professional workloads. The MSI MEG X870E ACE MAX Motherboard supports up to 256GB DDR5 memory with speeds reaching 8400+ MT/s via AMD EXPO™, ensuring lightning-fast responsiveness for gaming, AI, and content creation. Storage expansion is unmatched with five M.2 slots, including two PCIe 5.0 NVMe SSD slots, alongside reinforced PCIe 5.0 GPU support for next-gen graphics cards. Connectivity is cutting-edge with 13 rear USB ports including USB4, Wi-Fi 7, and 10G LAN, making this MSI 870 Motherboard one of the most advanced networking-ready boards available. Premium features like a 110A SPS VRM design, 64MB BIOS ROM, and robust heatsinks guarantee stable overclocking and long-term durability, while integrated AMP/DAC audio delivers studio-quality sound. Sleekly designed with MSI’s signature aesthetics, the MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard is the ultimate choice for gamers, creators, and professionals seeking a high-end MSI gaming motherboard that blends performance, reliability, and future-proof technology into one powerhouse platform.
In Bangladesh, you can get original MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard From CCTV Shop. We have a large collection of latest MSI AMD Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard comes with 3 years warranty.
The latest price of MSI MEG X870E ACE MAX Motherboard in Bangladesh is 0৳. You can buy the MSI MEG X870E ACE MAX Motherboard at best price from our website or visit any of our showrooms.
