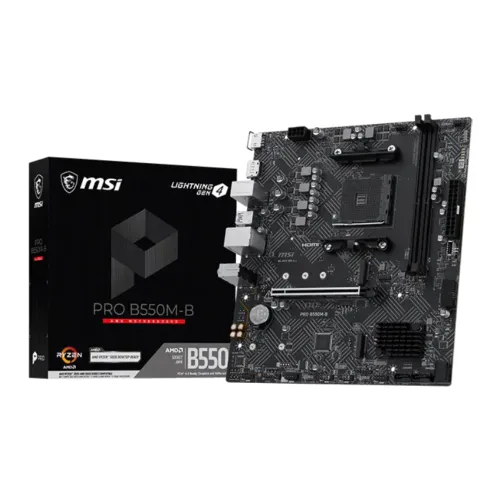

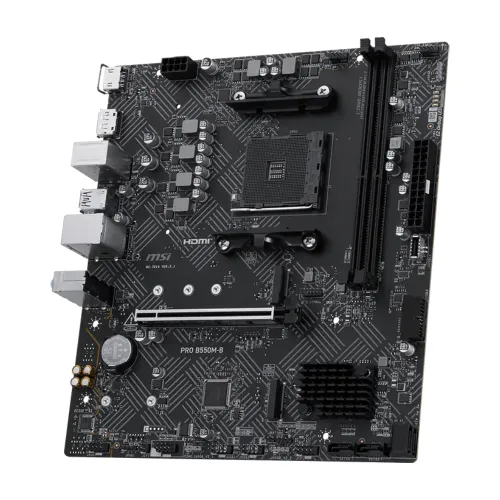

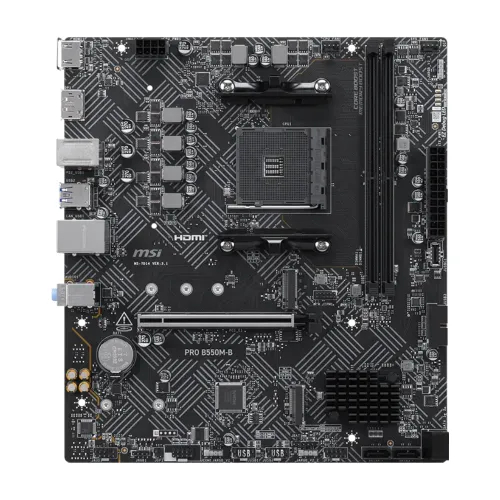

MSI PRO B550M-B AMD AM4 mATX Motherboard

Price To be announced
Status Up Coming
Product Code 48540
Brand MSI

Key Features

  • Model: PRO B550M-B
  • Supported CPU: Ryzen 5000 & 3000 Series and Ryzen 4000 G-Series
  • Supported RAM: 2 x DDR4 slots, Max 64GB, up to 4600+ MHz
  • Graphics Output: 1x HDMI 2.1, 1x DP 1.2
  • Features: 2x M.2 SSD Slot, Realtek 1Gbps LAN
  • View More Info
Up Coming

Specification

Basic Information
Supported CPUSupports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Socket AM4
ChipsetAMD B550
Form FactormATX
220mmx243.84mm
AudioRealtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI1x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
M.2 Socket2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices
Memory
TypeDDR4
Slots2x DDR4
Supported MemoryMemory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4600+ MHz
• 1DPC 2R Max speed up to 3866+ MHz
Maximum Memoryup to 64GB
Graphics
Graphics1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP 1.2, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

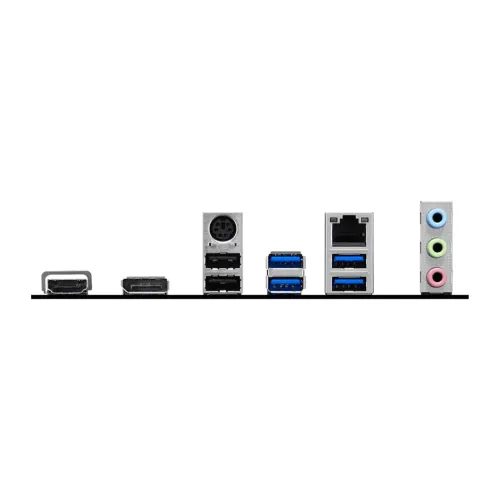

Connector & Ports
HDMI1x HDMI 2.1 port
Display Port (s)1x DisplayPort 1.2
USB (s)2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
LAN Port (s)1 x Realtek RTL8111H 1Gbps LAN
Supported Storage2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices
4x SATA 6G
Audio1x Front Audio (JAUD)
Internal I/O Ports1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
TPM (Trusted Platform Module )1x TPM module connector
Others
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty3 Years

Description

MSI PRO B550M-B AMD AM4 mATX Motherboard

The MSI PRO B550M-B Motherboard is a dependable and efficient MSI AMD Motherboard designed for mainstream PC builders who want stability, performance, and essential features at a great value. Built on the AMD B550 chipset with support for the AM4 socket, it is fully compatible with a wide range of AMD Ryzen 3000, 4000, and 5000 series processors, making it a versatile choice for gaming and productivity. With support for DDR4 memory up to 128GB and speeds reaching 4400+ MHz (OC), this MSI 550 Motherboard ensures smooth multitasking and fast responsiveness. It features PCIe 4.0 support for next-gen graphics cards and NVMe SSDs, delivering ultra-fast data transfer speeds and future-proof expansion. Storage options include M.2 slots with PCIe 4.0/3.0 support and multiple SATA ports, giving flexibility for both high-speed SSDs and traditional drives. Connectivity is practical with USB 3.2 Gen1 ports, HDMI and DVI-D outputs, and Gigabit LAN, ensuring stable networking and versatile display options. Enhanced with Core Boost technology, Audio Boost, and premium thermal solutions, the MSI PRO B550M-B provides reliable power delivery, improved sound quality, and efficient cooling for long-term durability. Compact in micro-ATX form factor, it fits easily into smaller cases while still offering robust functionality. Whether you’re building a budget-friendly gaming rig or a productivity workstation, the MSI PRO B550M-B Motherboard delivers dependable performance, essential features, and MSI’s trusted quality.

Buy MSI PRO B550M-B AMD AM4 mATX Motherboard from CCTV Shop

In Bangladesh, you can get original MSI PRO B550M-B AMD AM4 mATX Motherboard From CCTV Shop. We have a large collection of latest MSI AMD Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The MSI PRO B550M-B Motherboard Comes with 03 Years Warranty.

What is the price of MSI PRO B550M-B Motherboard in Bangladesh?

The latest price of MSI PRO B550M-B Motherboard in Bangladesh is 0৳. You can buy the MSI PRO B550M-B Motherboard at best price from our website or visit any of our showrooms.
