Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter

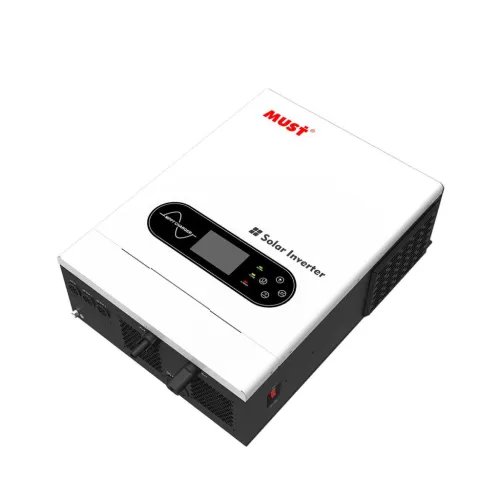

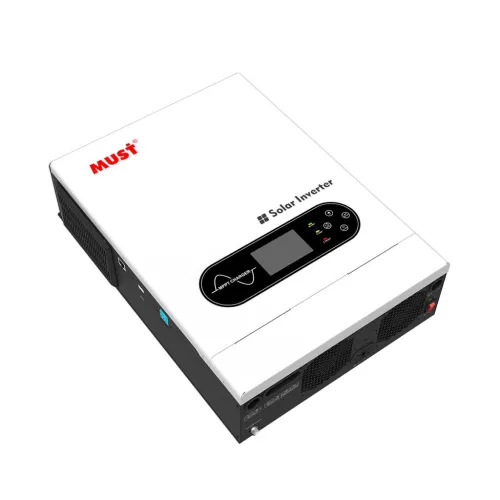

  • Angled top view of the Must PV18-3024 ECO Solar Inverter with white casing, LED indicators, and ventilation grills.

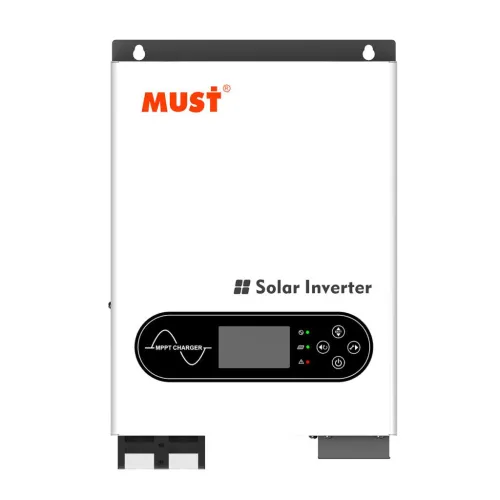

  • Top view of the Must PV18-3024 ECO Solar Inverter showing digital display, control buttons, and sine wave icon.

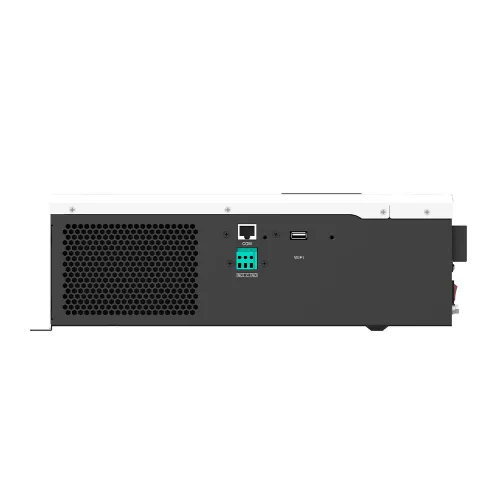

  • Rear panel of the Must PV18-3024 ECO Solar Inverter with HDBaseT LAN, USB, WiFi button, and cooling grille.

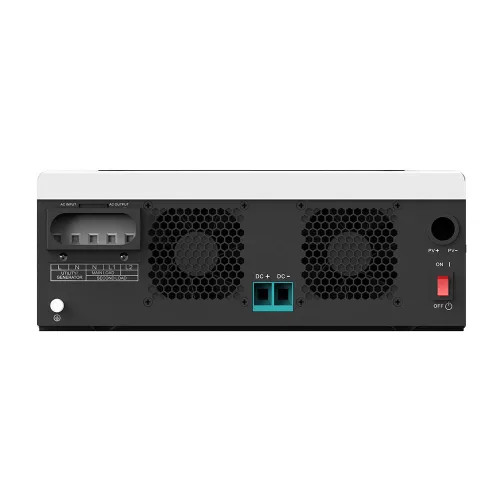

  • Rear view of the Must PV18-3024 ECO Solar Inverter showing AC/DC terminals, dual fans, and labeled PV input ports.

Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter

Price To be announced
Status Up Coming
Product Code 46024
Brand Must

Key Features

  • Model: PV18-3024 ECO
  • Rated Power: 3000VA/3000W, Waveform: Pure Sine Wave
  • Support RS485, CAN Monitoring Function, Cold Start Function
  • Built-in MPPT Solar Charge Controller, Smart LCD Display
  • Overload, Short Circuit, & Deep Discharge Protection
  • View More Info
stars 450 Star Points
Up Coming

Specification

Main Feature
Capacity3000VA
Display TypeSmart LCD display
Load Capacity3000W
Input Voltage230VAC
Output Voltage230VAC±5%(Setting)
Frequency (Battery Mode)50Hz / 60Hz (Auto sensing)
BatteryNormal voltage: 24VDC
Floating Charge Voltage: 27.4VDC
Overcharge Protection: 30VDC
Input Features
Frequency50Hz / 60Hz (Auto sensing)
Voltage Range170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE)
Output Features
Voltage Range230VAC±5%(Setting)
Type of WavePure sine wave
Transfer TimeTypical < 10ms , 20ms max
Physical Specification
Dimension290*367*111mm (W*H*D)
Weight6.7 Kg
Manufacture Warranty
Warranty1 year

Description

Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter

The Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter is ideal for modern households, small enterprises, and off-grid applications. This Must Solar Inverter is built with modern technology and produces a rated power output of 3000VA/3000W. It also has a pure sine wave output for stable and clean electricity, ensuring the safe operation of sensitive electronics and appliances. With a surge power output of 6000W, it can readily handle high start-up loads, and its peak inverter efficiency surpasses 90%, providing optimal energy conversion and low power loss. This Must PV18-3024 ECO Solar IPS combines solar, AC utility, and battery power sources to ensure continuous power delivery even during outages, making it ideal for both residential and commercial applications. The Must PV18-3024 ECO 3000VA IPS is designed with versatility in mind, supporting a 24VDC battery system and featuring a smart LCD that allows users to alter essential settings such as charging voltage, working modes, and charging current. Its built-in MPPT solar charge controller maximizes power generation from solar panels, with an MPPT voltage range of 30-320VDC and a maximum solar input power of 4000W. The Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter enables up to 100A solar charging and 60A AC charging, for a total maximum charging current of 100A, providing powerful and efficient energy management. The Must Solar Inverter also includes advanced protective features, including overload, short-circuit, and deep discharge prevention, which ensure long-term reliability. It communicates via RS-485 and CAN ports, enabling integration with lithium batteries and remote monitoring for intelligent energy management. With dual output channels for smart load control, cold start capability, and a wide AC input voltage range of 170-280VAC, the Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter provides consistent performance.

Buy Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter from CCTV Shop

In Bangladesh, you can get original Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter From CCTV Shop. We have a large collection of latest Must Inverter to purchase. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter comes with 1 year warranty.

What is the price of Must PV18-3024 ECO 3000VA Solar Inverter in Bangladesh?

The latest price of Must PV18-3024 ECO 3000VA Solar Inverter in Bangladesh is 0৳. You can buy the Must PV18-3024 ECO 3000VA Solar Inverter at best price from our website or visit any of our showrooms.
