close| Price | 98,000৳ |
| Regular Price | 108,000৳ |
| Status | In Stock |
| Product Code | 53635 |
| Brand | Solis |
| General Information | ||
| Rated AC Output Power | 5kW | |
| App Control | Yes | |
| Protection | DC reverse-polarity protection Short circuit protection Output over current protection Insulation resistance monitoring Residual current detection Surge protection Grid monitoring Anti-islanding protection Temperature protection Multi peak scan Integrated AFCI 2.0 Integrated DC switch |
|
| Noise Level | < 30 dB(A) | |
| Others | Topology: Transformerless Supports export power control > 150% DC/AC ratio Display: LCD THDi: < 2% DC injection current: < 0.5% In |
|
| Output | ||
| AC Output | Max. output power: 5.5 kW Max. apparent output power: 5.5 kVA Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V Rated grid frequency: 50 Hz / 60 Hz Power Factor: >0.99 (0.8 leading - 0.8 lagging) THDi: <2% |
|
| Input (Charging) | ||
| DC Input | Recommended max. PV power: 7.5 kW Max. input voltage : 1100V Rated voltage: 600 V Start-up voltage: 180 V MPPT voltage range: 160 - 1000 V Max. input current: 16 A / 16 A Max. short-circuit current: 20 A / 20 A MPPT number / Max. input strings number: 2 / 2 |
|
| Solar Input | Yes | |
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 310 × 563 × 219 mm | |
| Weight | Approx. 16.9 kg | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |

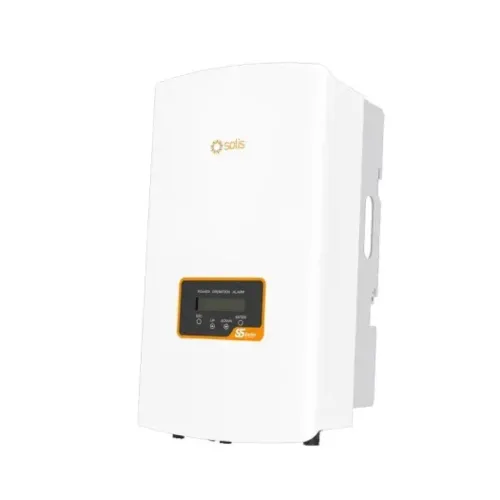

The Solis S5-GR3P5K Inverter is a 5KW three-phase grid-tied solar inverter designed for compatible on-grid solar power systems. It converts DC electricity generated by solar panels into AC electricity for use in a grid-connected installation. The inverter supports a recommended maximum PV input power of 7.5kW and features a transformerless design. With support for three-phase grid connections, this Solis 5KW Inverter is suitable for solar installations that require a compatible three-phase grid-tied solution.
The Solis S5-GR3P5K 5KW Inverter has a rated AC output power of 5kW and a maximum output power of 5.5kW. It supports a recommended maximum solar PV input power of 7.5kW, allowing system designers to configure a suitable solar panel array. The maximum DC input voltage is 1100V, while the rated voltage is 600V. These specifications help installers assess whether the inverter matches the voltage and power requirements of the planned solar installation.
This Solis S5-GR3P5K has Dual MPPT Inverter features two maximum power point trackers (MPPTs) and supports two input strings for the 5KW model. Its MPPT voltage range is 160–1000V, allowing the inverter to manage solar input within the specified operating range. Proper panel configuration is important for matching the solar array to the inverter's electrical requirements. Installers should check the panel voltage, current, string arrangement, and total PV capacity before connecting the system.
The Solis On-Grid Solar Inverter supports three-phase grid connections at 220/380V or 230/400V, with a rated grid frequency of 50Hz or 60Hz. It is designed for solar systems that operate in coordination with a compatible electricity grid. The inverter (S5-GR3P5K) also supports export power control, which can help manage electricity exported to the grid when the system is configured with the required equipment and settings. Grid compatibility and local installation requirements should be confirmed before setup.
The Solis S5-GR3P5K belongs to the S5-GR3P(5–20)K series, which lists maximum efficiency of up to 98.7%; the exact efficiency of the 5KW model should be confirmed from the applicable model-specific data. The series also supports 24-hour load consumption monitoring, helping users track energy use when the required monitoring setup is available. Adaptive weak-grid functionality is included to support operation under varying grid conditions.
This Solis 5KW Three Phase Inverter includes several protection functions, such as DC reverse-polarity protection, short-circuit protection, output overcurrent protection, insulation resistance monitoring, residual current detection, surge protection, grid monitoring, anti-islanding protection, and temperature protection. The SOLIS S5-GR3P5K inverter has an IP66 ingress protection rating. Integrated AFCI 2.0 is listed as optional in the datasheet. These features help installers assess the inverter's protection provisions when designing a compatible solar system.

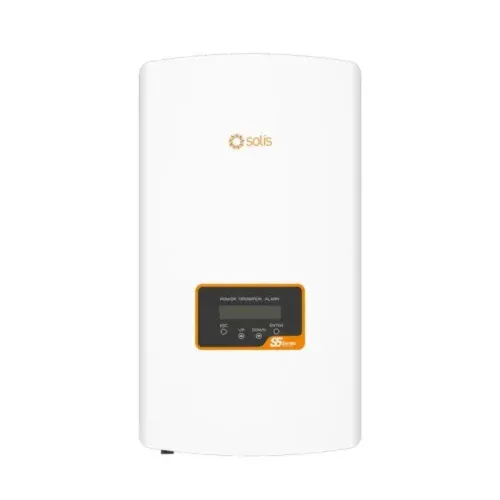

The inverter includes an LCD display for viewing system information. RS485 communication is supported, while Wi-Fi and GPRS connectivity are available through optional accessories listed in the datasheet. These communication options can support monitoring when the appropriate equipment is installed and configured. Buyers should confirm which accessories are included with the specific product package before purchasing.
In Bangladesh, you can get original Solis S5-GR3P5K 5KW Three Phase ON-Grid Solar Inverter From CCTV Shop. We have a large collection of latest Inverter to purchase. Order Online Or Visit your Nearest CCTV Shop Shop to get yours at lowest price. The Solis S5-GR3P5K 5KW Three Phase ON-Grid Solar Inverter comes with 5 Year warranty.
The latest price of Solis S5-GR3P5K 5KW Solar Inverter in Bangladesh is 98,000৳. You can buy the Solis S5-GR3P5K 5KW Solar Inverter at best price from our website or visit any of our showrooms.
